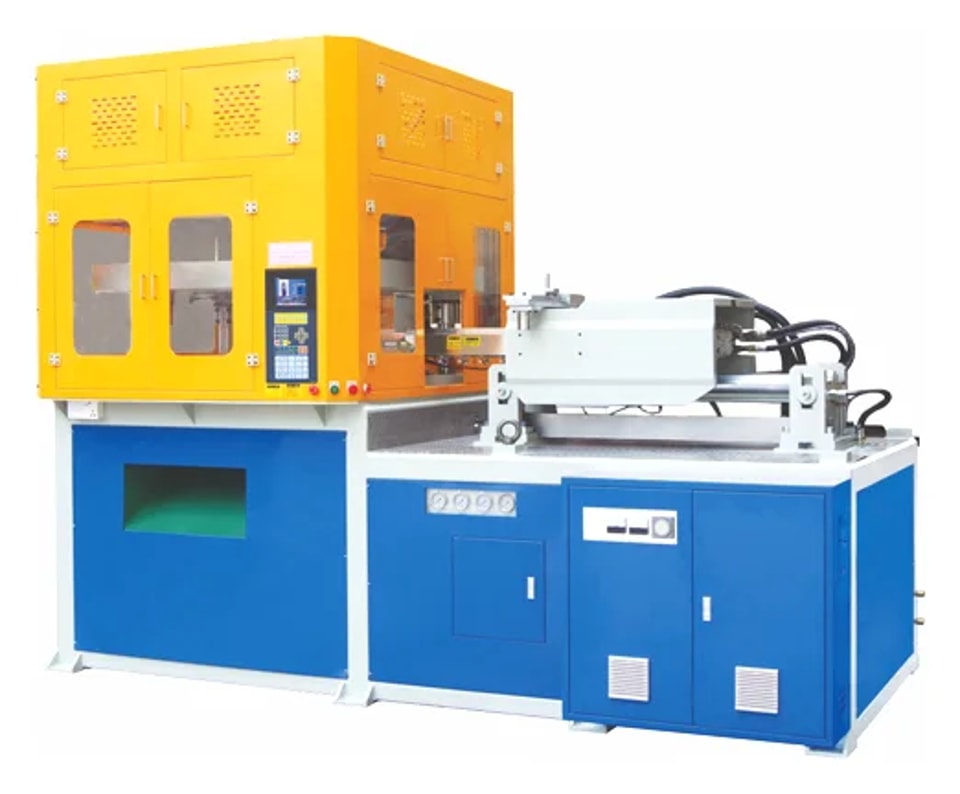

LED Bulb Injection Blow Molding Machine TFVH4-VH60R3

Fully automatic three-station machine that combines injection and blow molding for LED bulb shells, with vertical clamping and horizontal injection. A servo-driven, pneumatically positioned table keeps hydraulic oil away from the parts.

Key features

• Fully automatic integrated injection and blow molding machine with vertical clamping and horizontal injection.
• Three stations: injection, blow molding and part ejection.
• Horizontal injection with nozzle height adjustable to suit different moulds.
• Injection drive system configurable to customer requirements.
• Servo-driven rotary table with pneumatic positioning for accurate indexing at every station, with no risk of hydraulic oil contaminating parts.
• PLC control with timing accuracy of 0.01 s.
• Dedicated air storage unit for stretching and blowing.
• Independent temperature control for each heater band for optimal barrel heating.
• Simple operation with no special training required.
• Main components surface-treated (ground, plated, blackened or nitrided) for durability; screw with special surface treatment.
