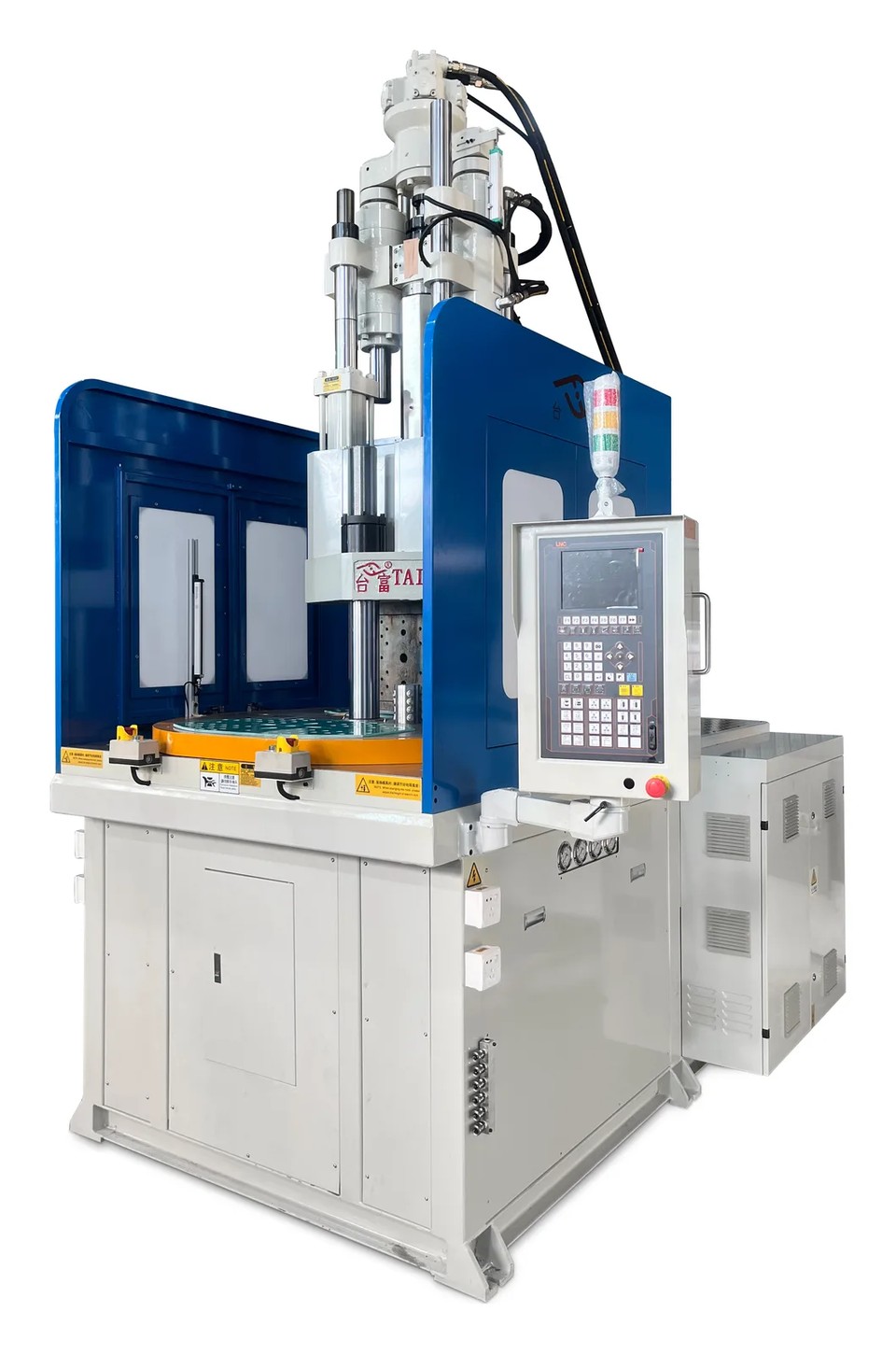

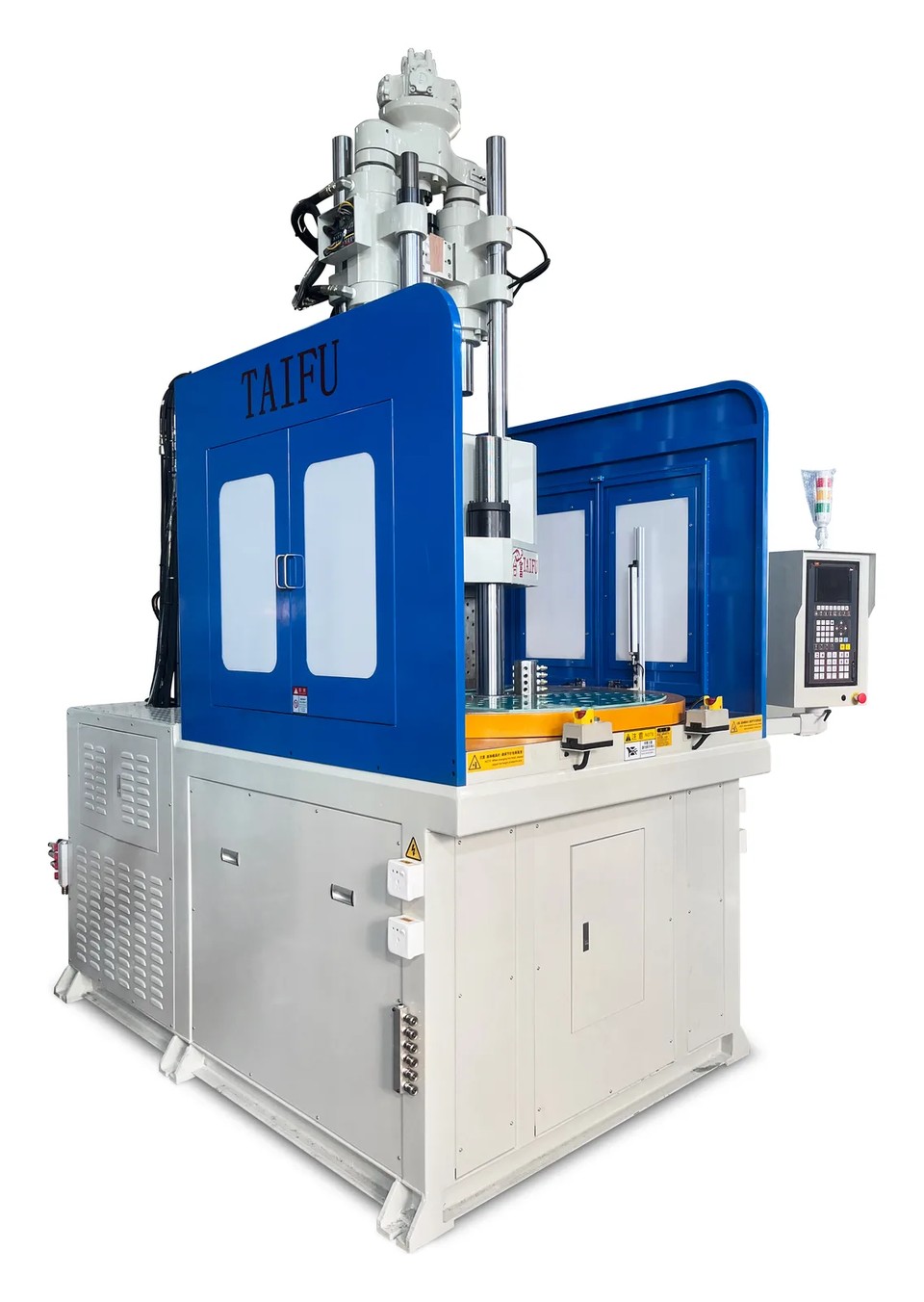

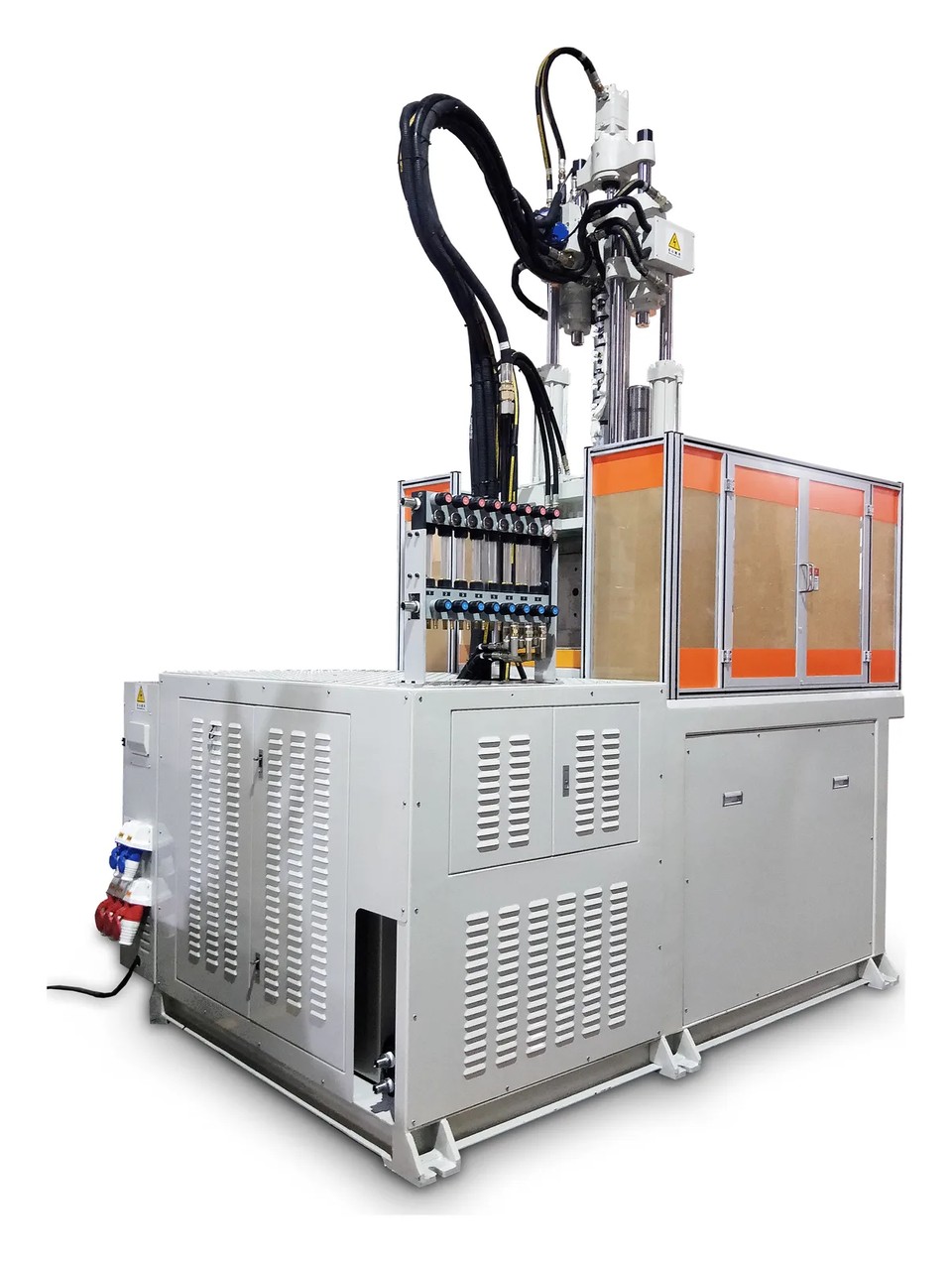

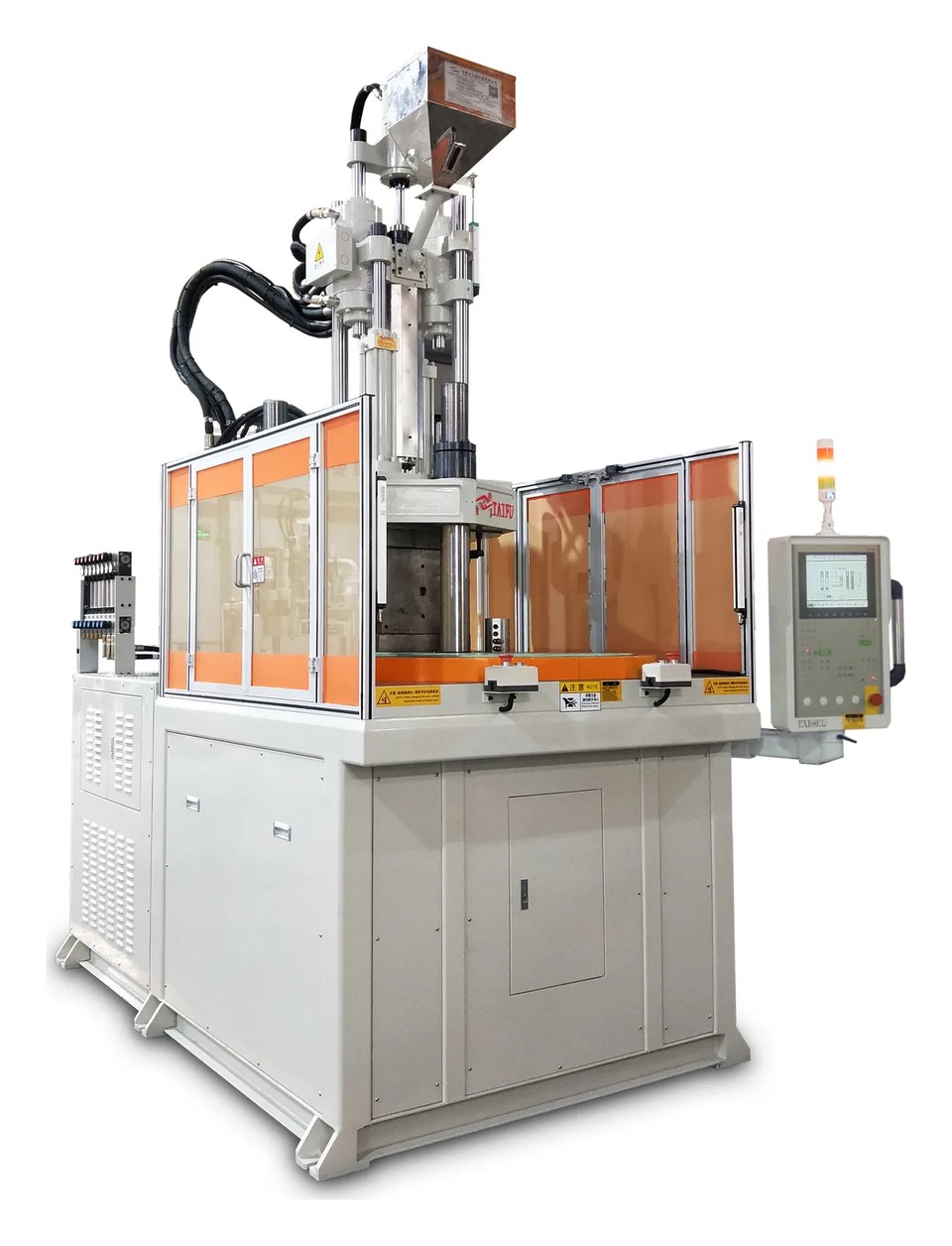

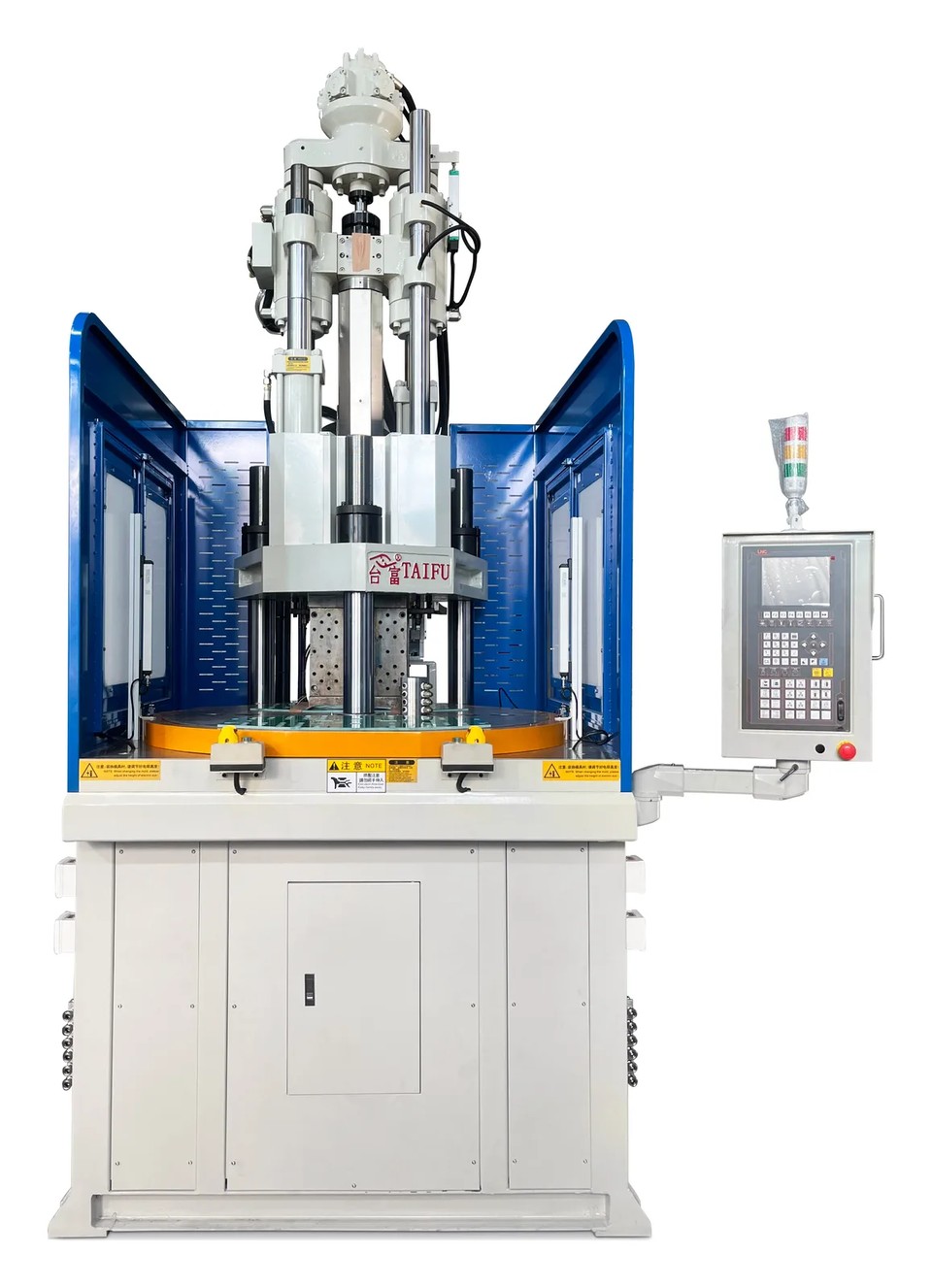

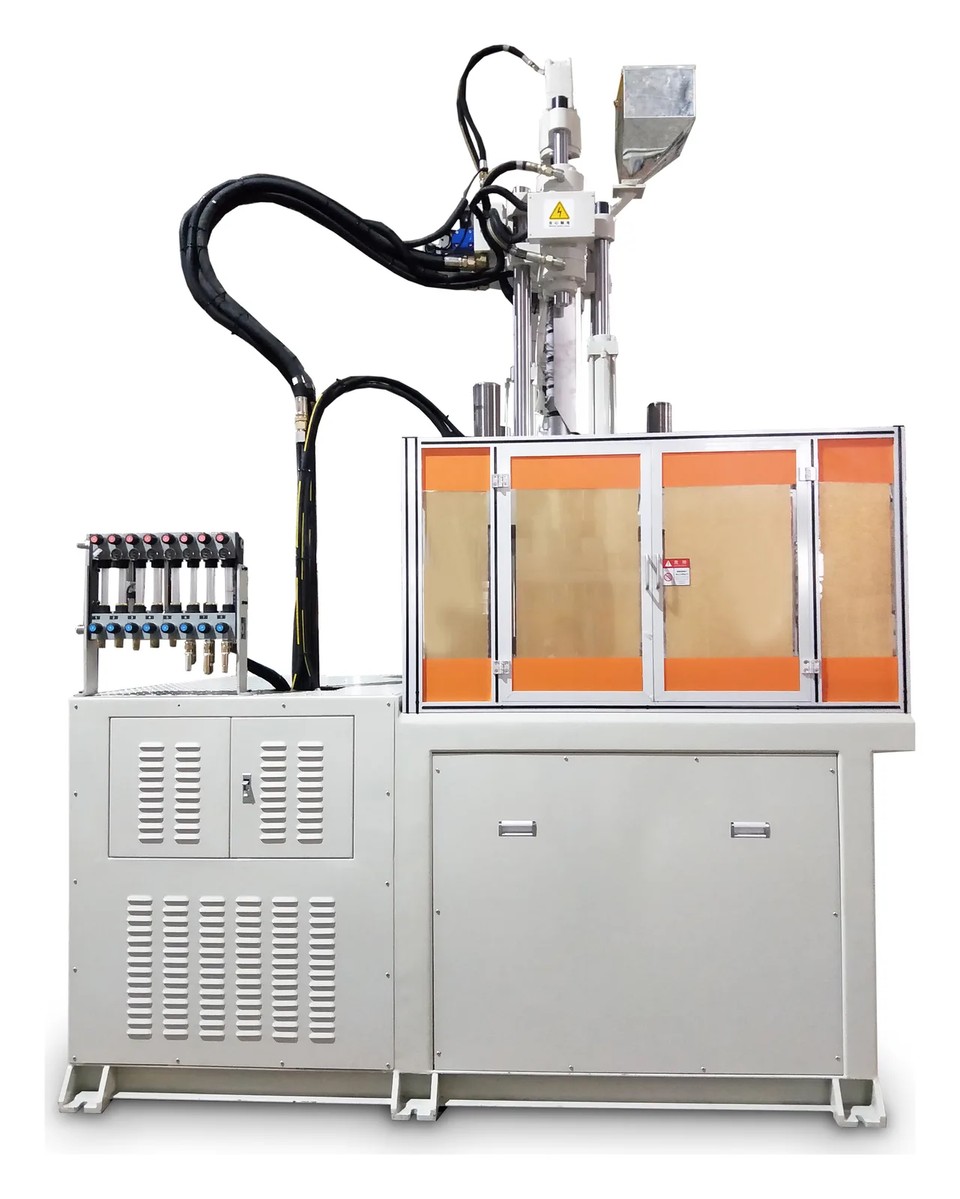

Rotary Table Vertical Injection Molding Machine TFV3-120R2 (KEBA Controller)

Two-station rotary table vertical machine equipped with a KEBA controller, factory monitoring software and a standard robot interface. Suited to overmolded appliance, phone and eyewear parts.

Key features

• 180° alternating rotary table: the operator removes parts and loads inserts at a fixed position, for easy operation and high output.
• Table locked by a locating pin after each rotation for high-precision positioning and accurate mould closing.
• Water jacket in the table centre supplies cooling water to the lower moulds.
• KEBA controller technology: high-performance industrial computer with EasyNet factory machine monitoring, EasyMold mould data management, ServiceNet remote support and an open platform for customer development.
• Standard robot interface; direct servo-valve drive for faster, more accurate response.
• Temperature control accuracy ±0.5 °C; USB program updates and maintenance; 32-bit CPU at 400 MHz–2.26 GHz; I/O short-circuit protection.
• Machine finish available in silk, gloss, matte and other textures, with custom colors on request.
• Two-station table as standard; three- or four-station tables available on request, ready for automated line integration.
• Standard three-tie-bar direct-pressure clamping; four-tie-bar clamping available for special moulds.
• Ready for automatic insert-loading and part-removal devices for fully automatic operation.
