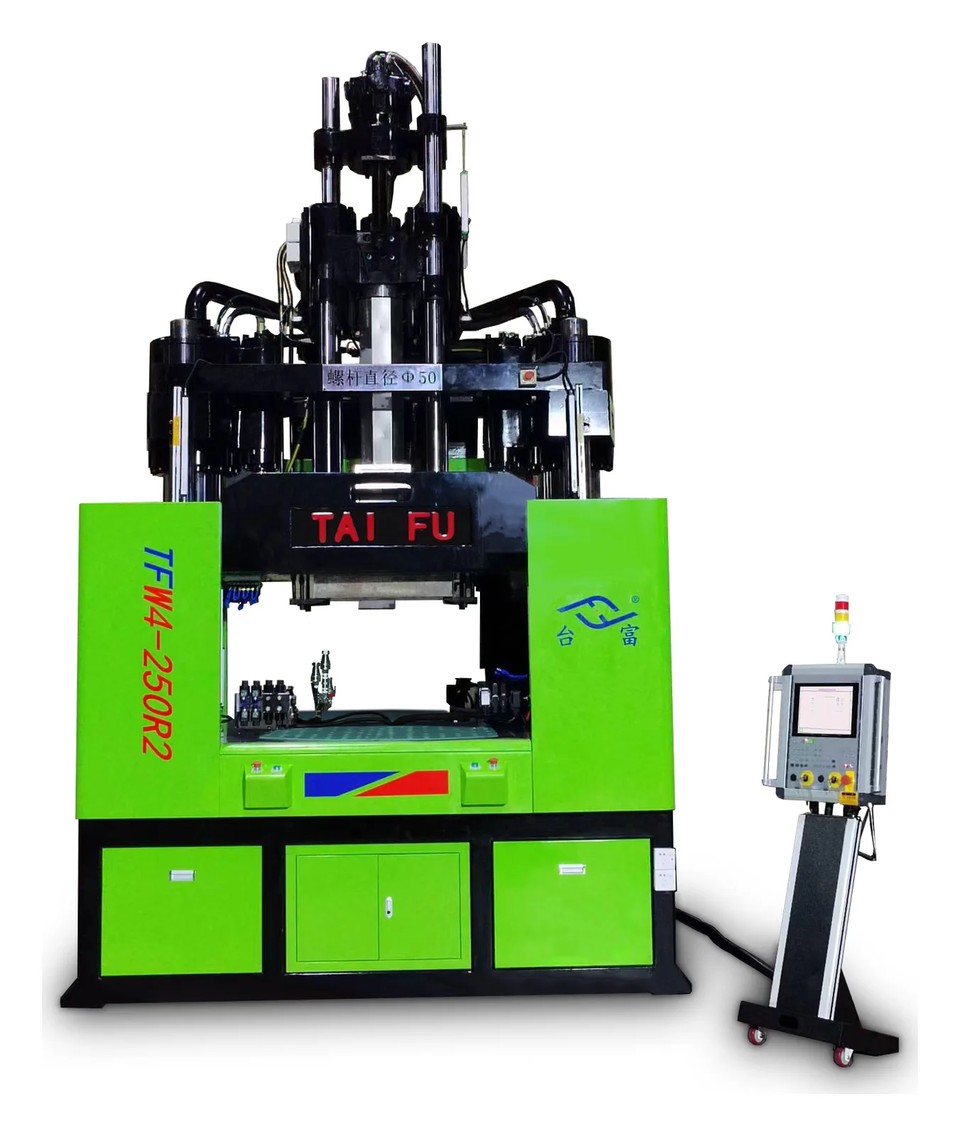

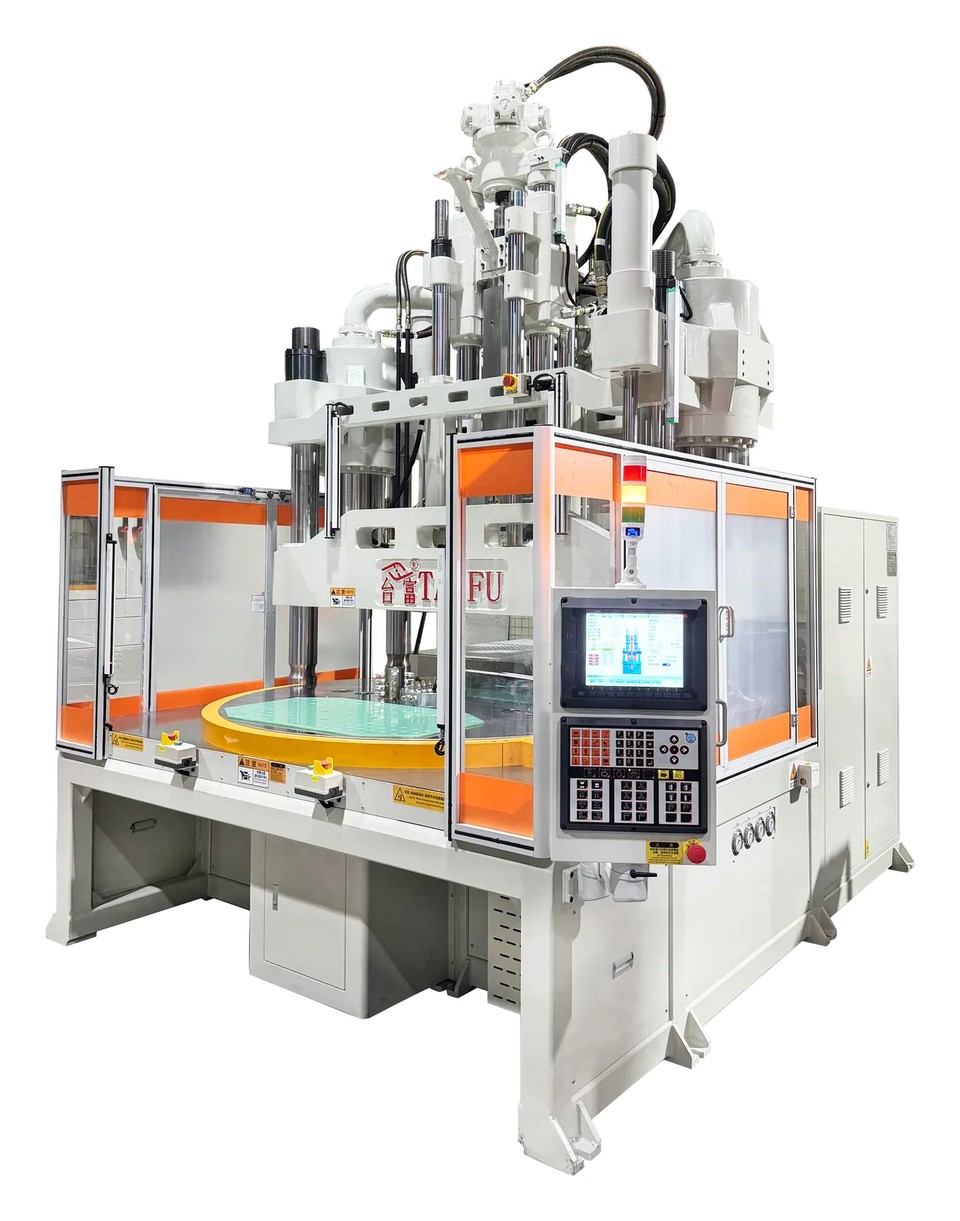

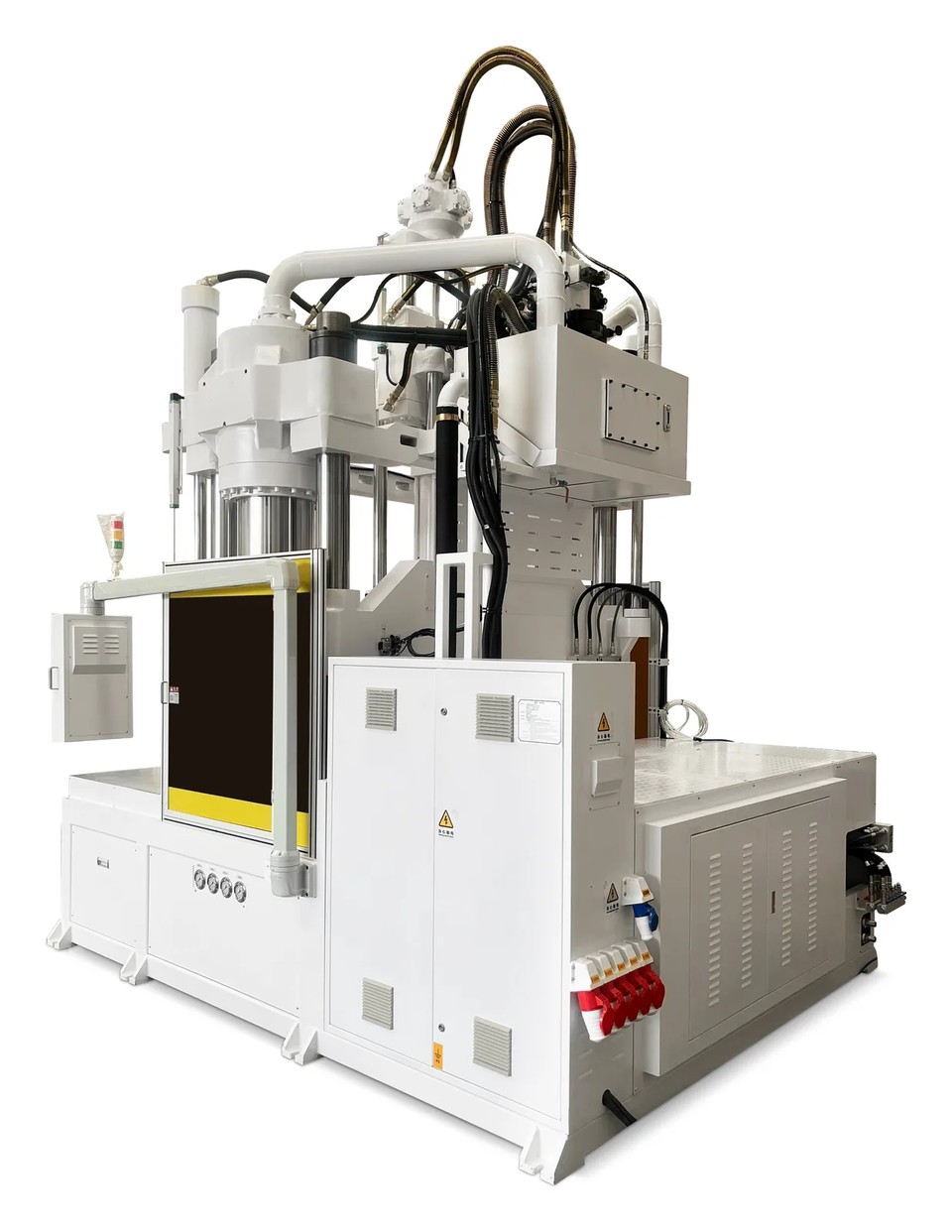

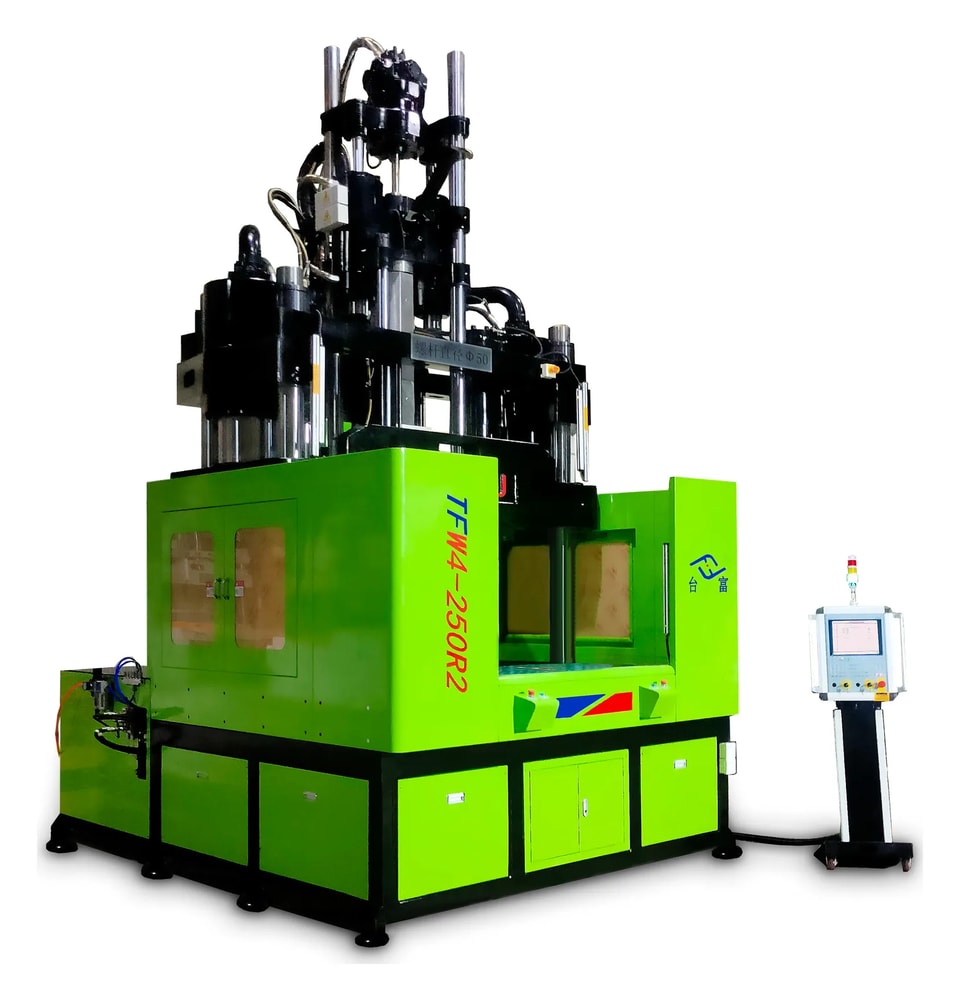

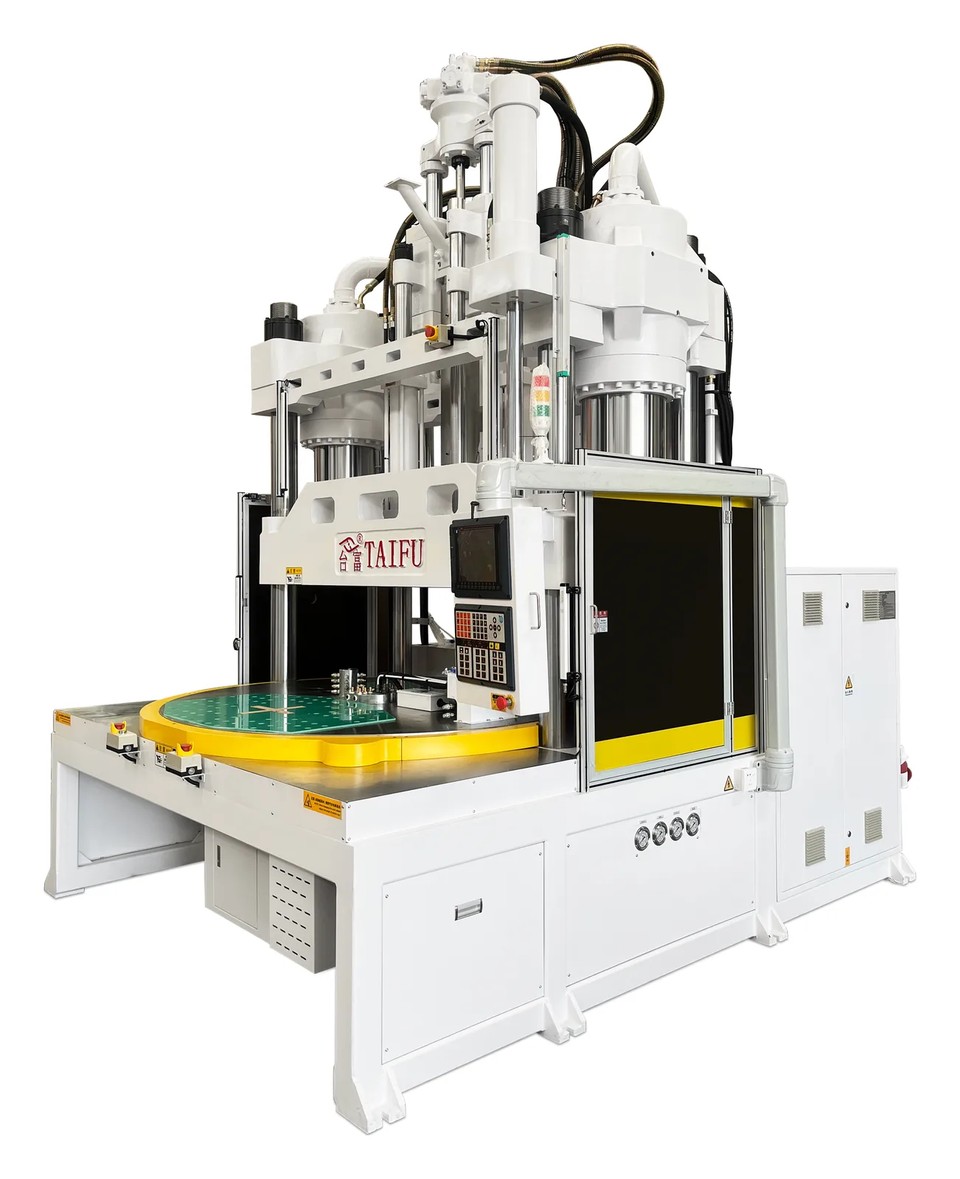

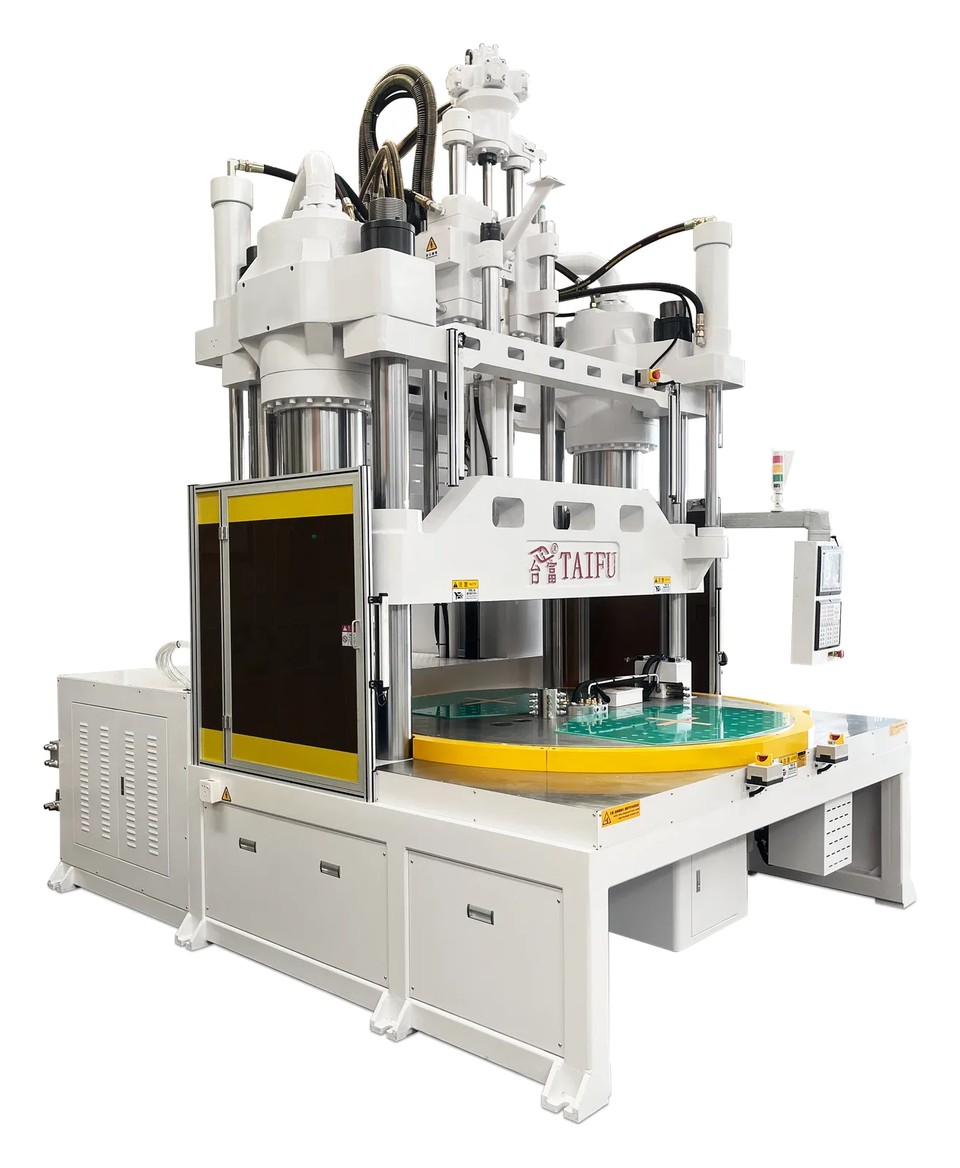

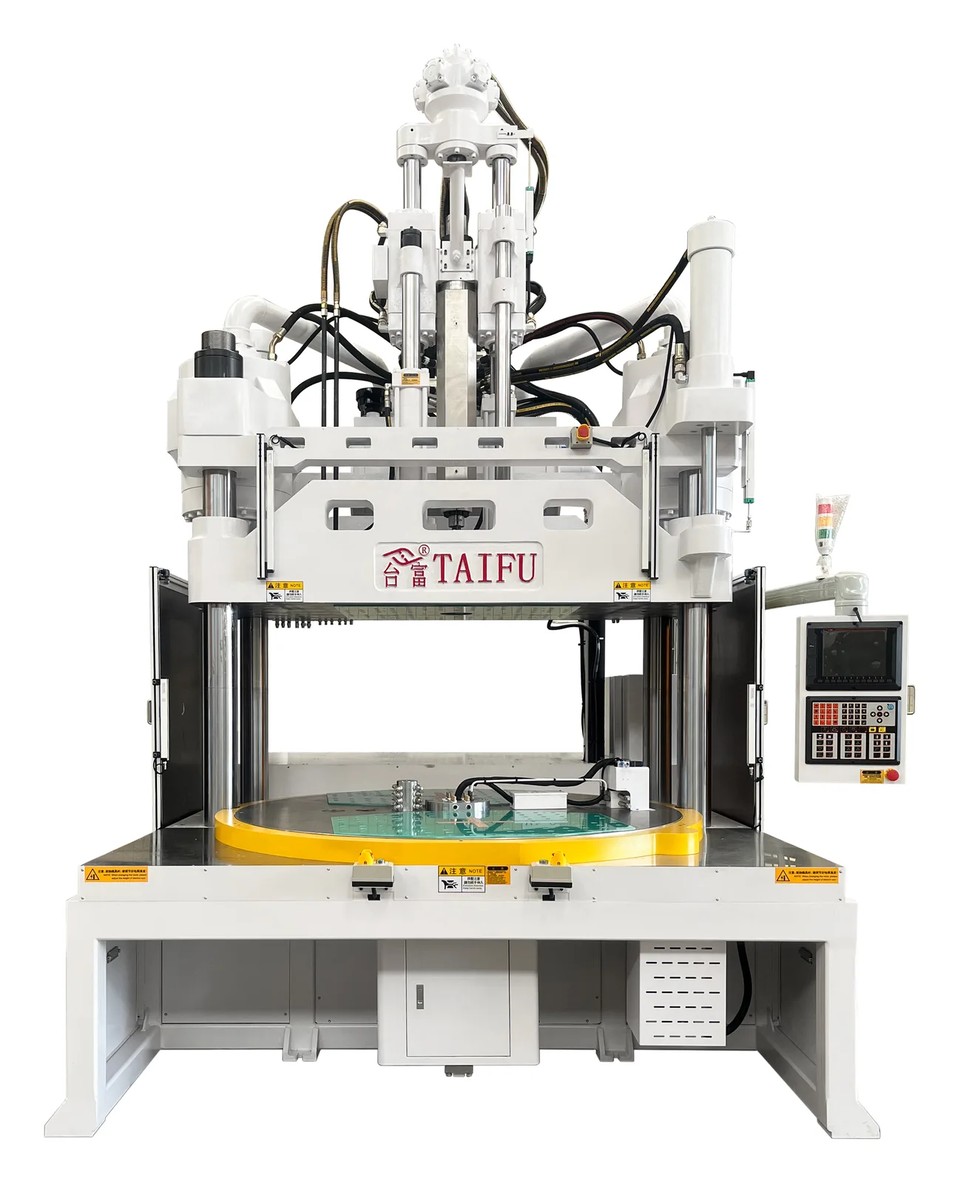

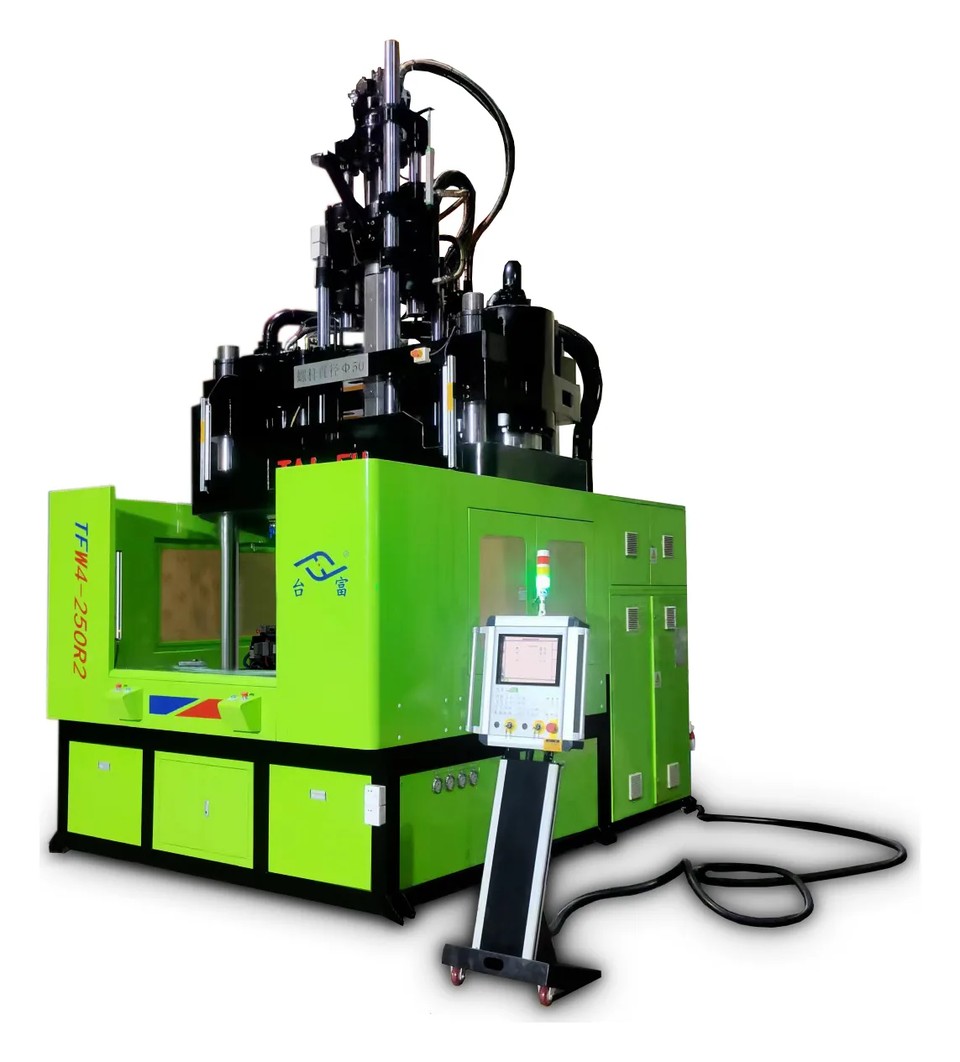

Low Table Rotary Vertical Injection Molding Machine TFW4-250R2

Low-table rotary vertical injection molding machine with 250 T clamping force and a 600–1000 mm working height, designed for large insert-molding moulds. Ideal for overmolding appliance and automotive parts.

Key features

• 250 T low-table rotary vertical injection molding machine.
• Working table height of 600–1000 mm: no operator platform required.
• Large mould space: accepts mould thickness of 250–400 mm without changing tie-bars; opening stroke 250–700 mm (customizable).
• Lower machine height keeps the production area clean and increases clamping rigidity and mould life.
• Four-tie-bar design with no centre obstruction, for a large mould mounting area.
• Moving platen guided by oil-free self-lubricating bronze bushings.
• 180° alternating rotary table; two stations as standard, three or four on request.
• Ready for robots and automatic insert-loading and part-removal devices.
