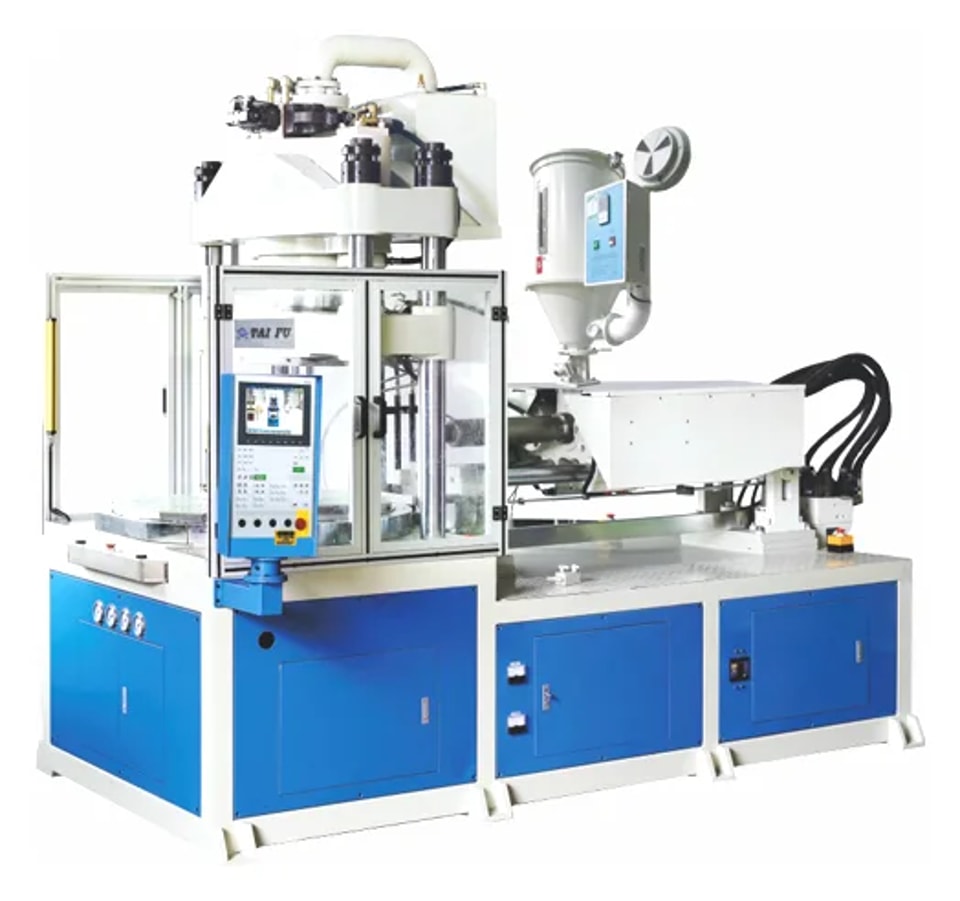

Vertical Clamp Side-Injection Injection Molding Machine TFVH4-VH160R2
Vertical clamping, horizontal injection machine with a long opening stroke, large shot capacity and wide tie-bar spacing for large insert-molded parts. Processes both thermoplastics and thermosets.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
Vertical clamping, horizontal injection machine with a long opening stroke, large shot capacity and wide tie-bar spacing for large insert-molded parts. Processes both thermoplastics and thermosets.
Key features
- Vertical clamping with horizontal injection, long opening stroke and large shot capacity for large insert-molded parts.
- Extra-wide tie-bar spacing for a large mould area and easy mould set-up.
- Horizontal injection unit height adjusted by a hydraulic-motor-driven lead screw: fast, accurate and few restrictions on the mould parting line.
- Moving platen on oil-free self-lubricating bushings for smooth reciprocation and long service life.
- Optional closed-loop injection for optoelectronic-grade precision.
- Available with sliding table or rotary table to match insert characteristics and cycle time.
- Suitable for both thermoplastics and thermosets.
Applications
Typical parts
- Large insert-molded parts
- Optoelectronic parts
- Thermoplastic and thermoset parts
Options
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
Full specifications for TFVH4-VH160R2 depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
