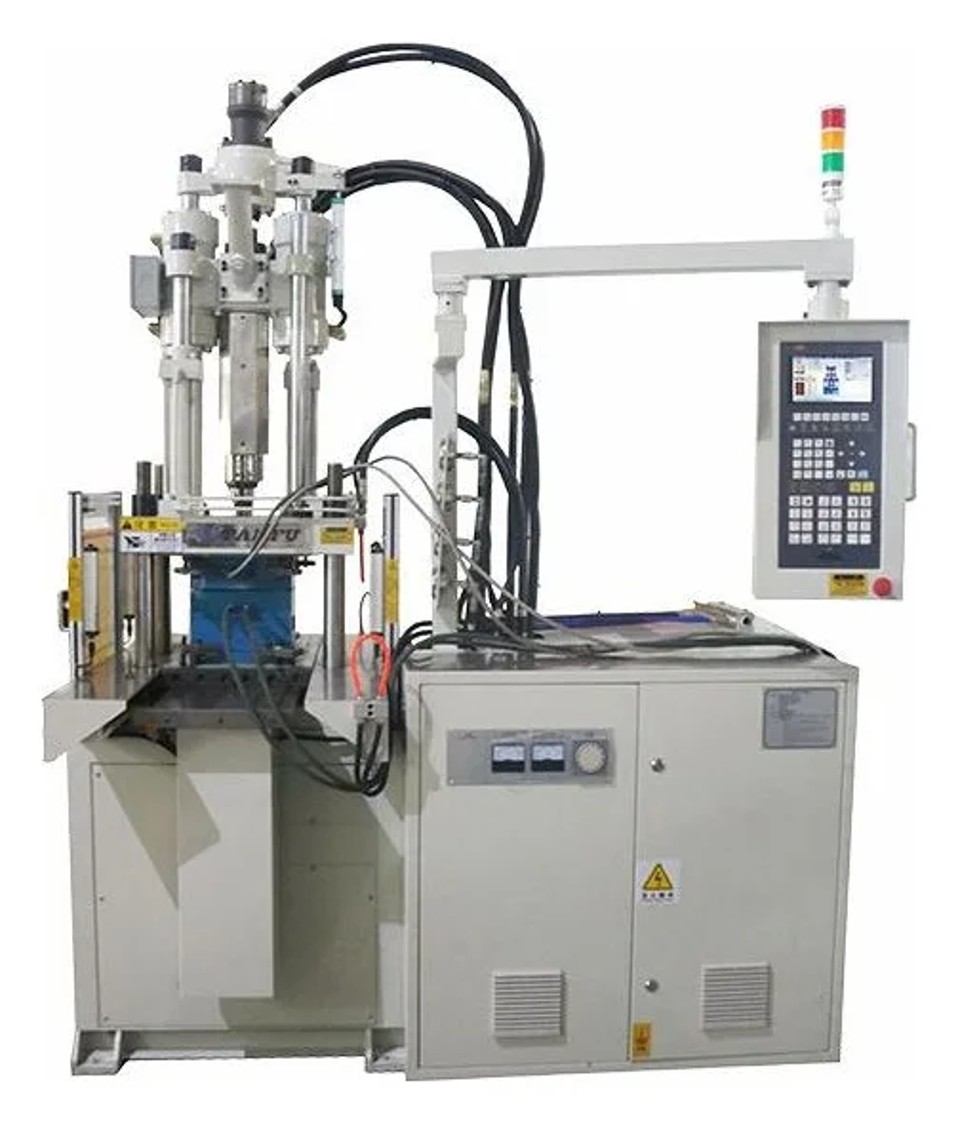

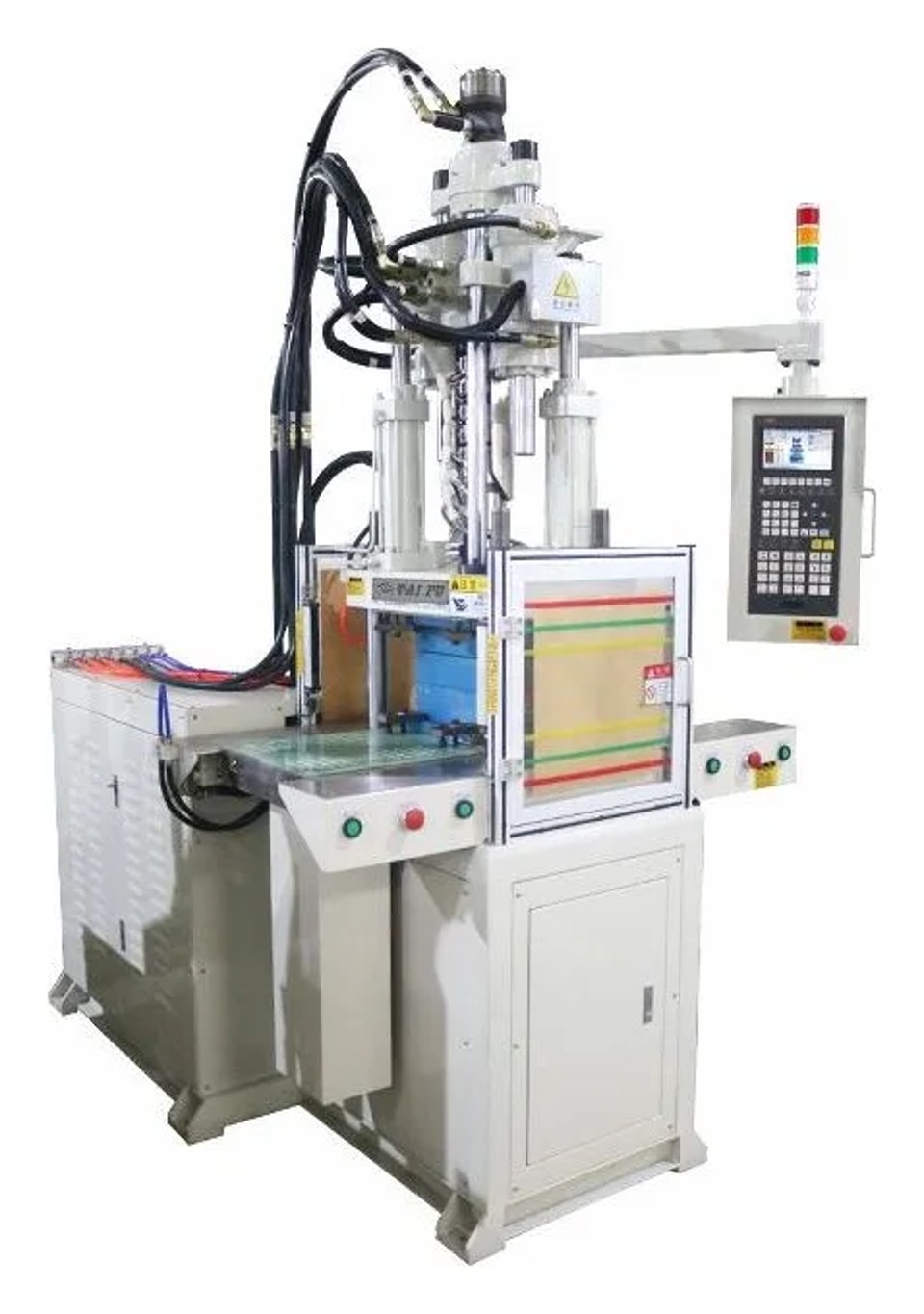

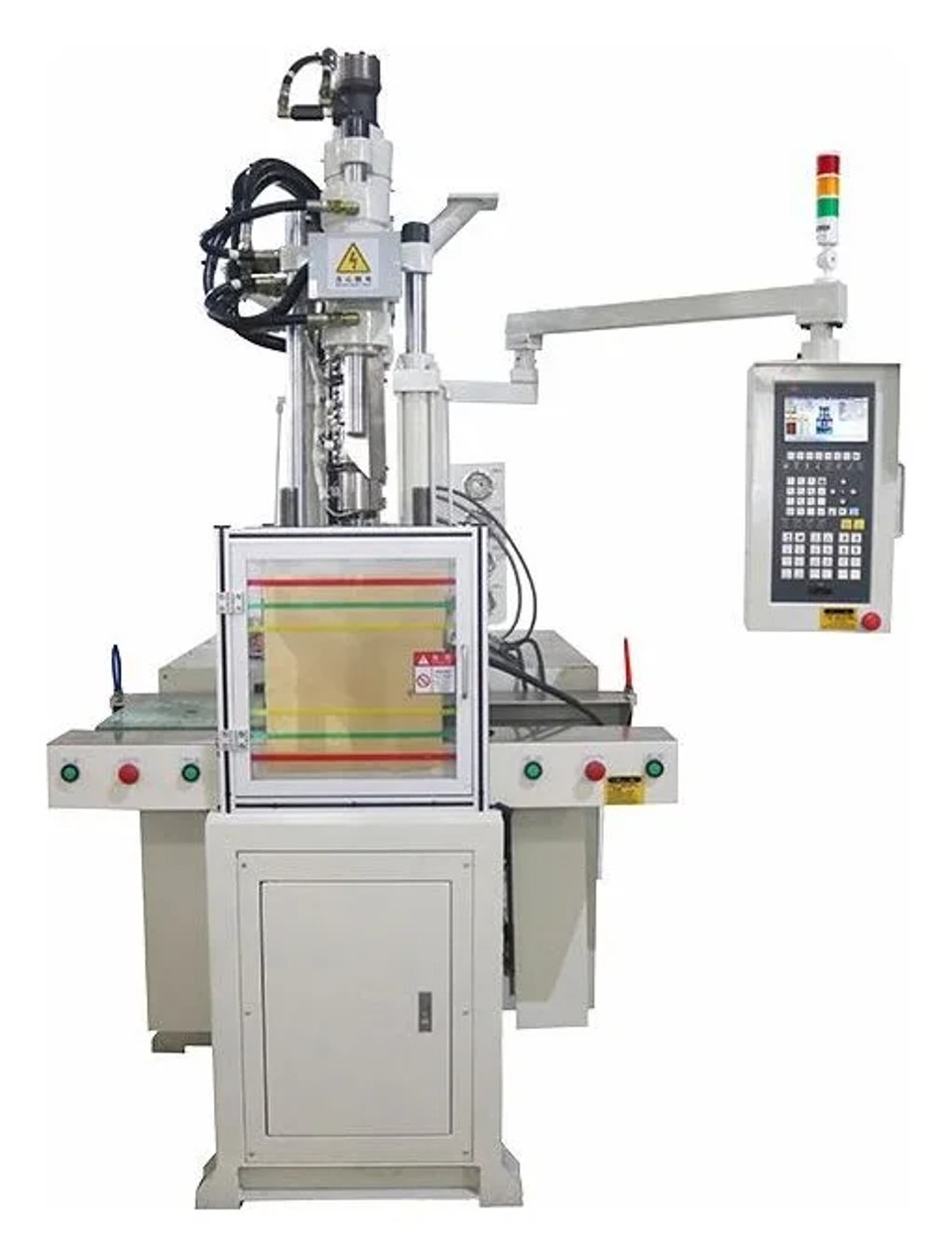

Double Sliding Table Vertical Injection Molding Machine TFV4-35SD

Compact double sliding table vertical machine: two lower moulds shuttle alternately so one molds while the other is loaded outside the mould area. Ductile iron slides ensure long-term accuracy.

Key features

• Vertical four-tie-bar direct-pressure clamping and vertical injection.
• Chinese/English controller with full-screen display and dual proportional pressure and flow control; optimized mechanics for smooth, fast operation.
• Sliding plate and base made of ductile iron, separated by steel strips at contact surfaces and fitted with lubrication holes to minimize wear and deformation and keep the slide accurate over time.
• Ejector configurable for each slide with adjustable stroke; ejection force, ejector speed and ejection count can be preset.
• Two lower moulds slide alternately left and right: one molds while inserts are loaded into the other outside the mould area.
• Hydraulic options: semi-closed loop, closed loop, servo or high-speed injection.
• Expandable program for connection with automatic insert-loading and part-removal equipment for fully automatic operation.
