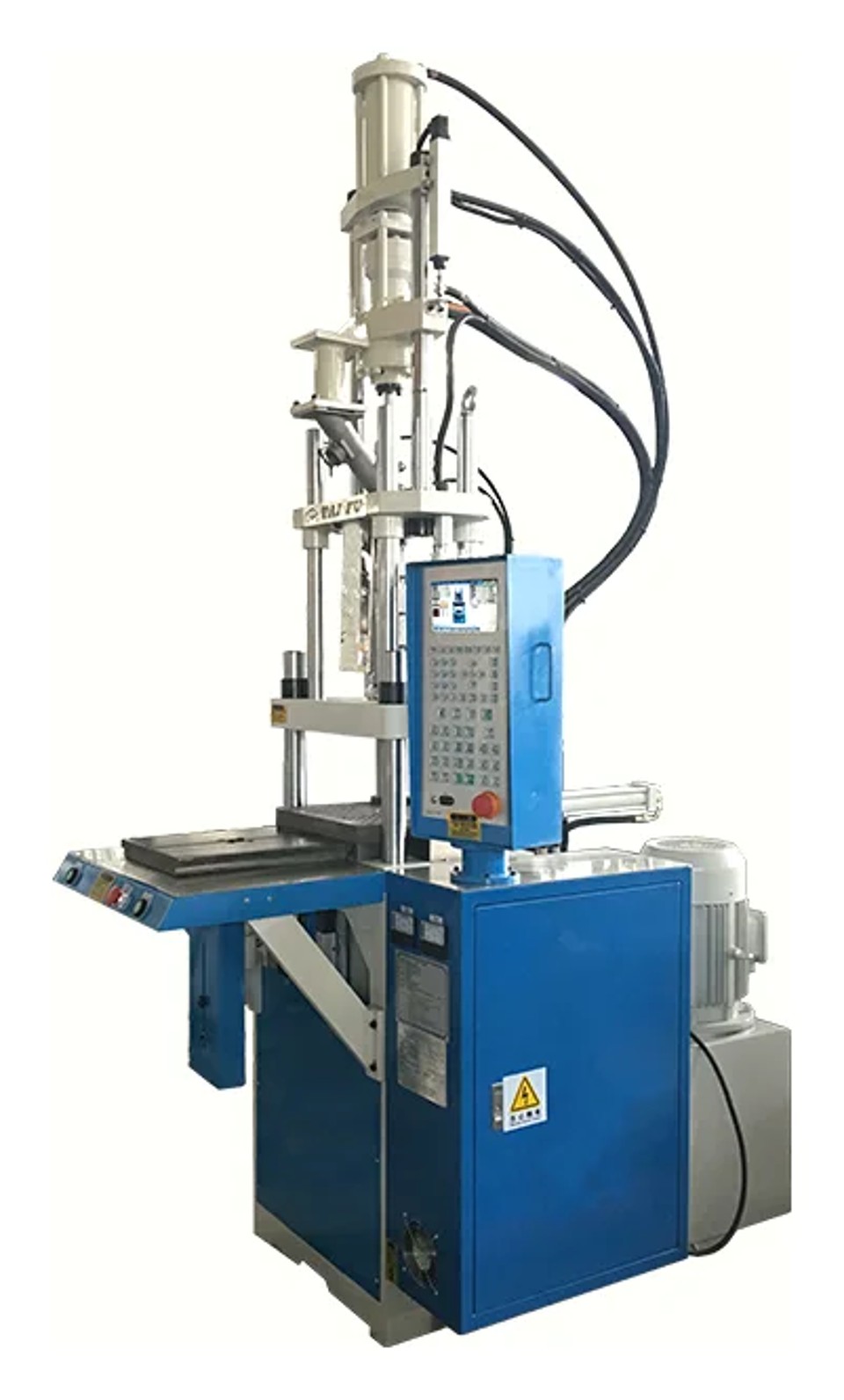

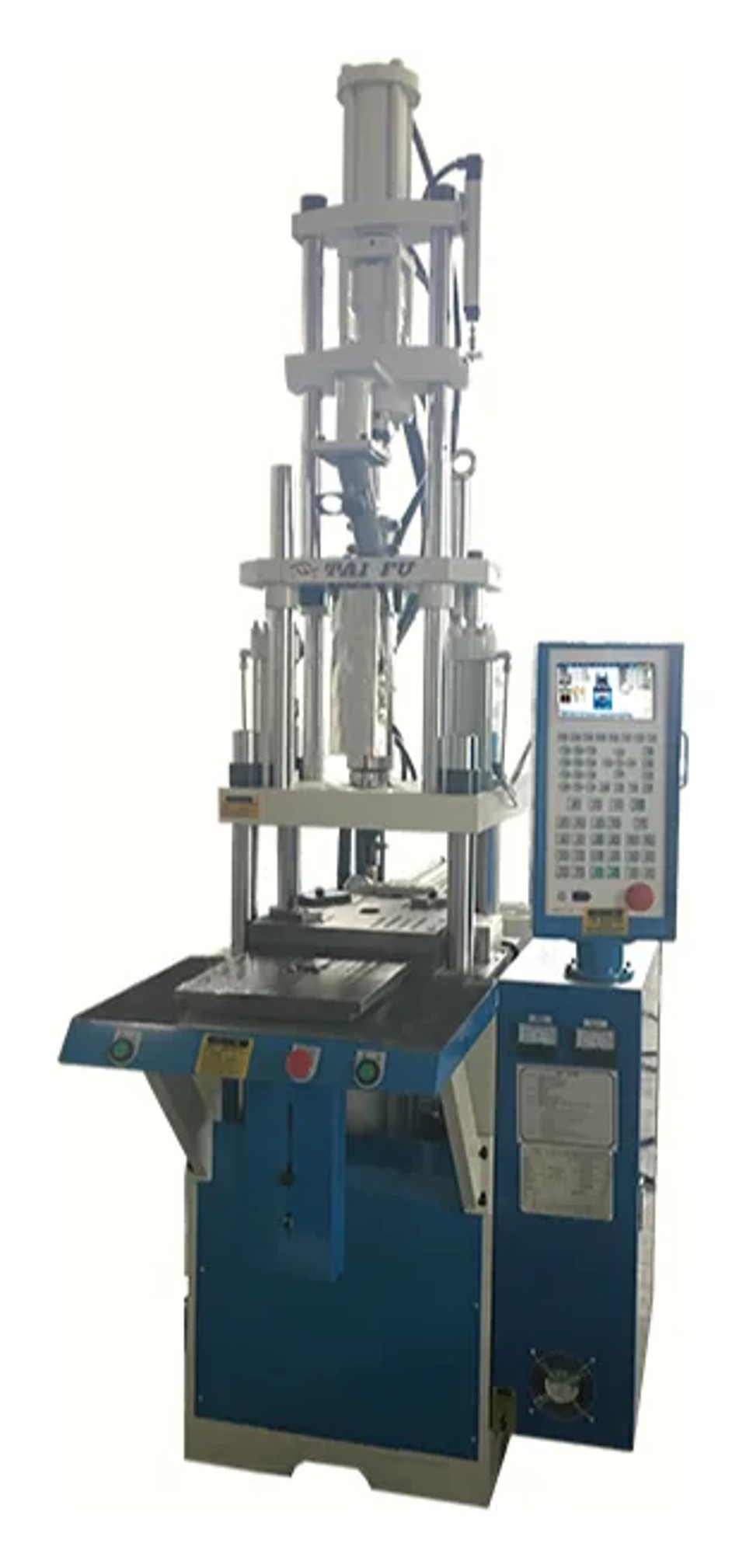

Single Sliding Table Vertical Injection Molding Machine TFV4-25S

Compact single sliding table vertical machine for small engineering plastic insert-molded parts such as overmolded screw heads and watch strap parts.

Key features

• Single sliding lower mould added to the V series: after mould closing and molding, the lower mould slides out to the operator and parts are ejected outside the mould area.
• Multi-stage temperature, injection pressure and injection speed control with stepless back-pressure adjustment, suited to molding engineering plastic parts.
• High L/D screw ratio, suited to special engineering plastics.
• Expandable control program for connection with automatic insert-loading and part-removal equipment, enabling fully automatic operation.
• Direct-pressure clamping with master/slave cylinders: fast mould approach followed by slow, low-pressure closing for longer mould life.
• Automatic fault display for easy troubleshooting and maintenance; optional servo motor system, with screw and clamping force options to suit the application.
