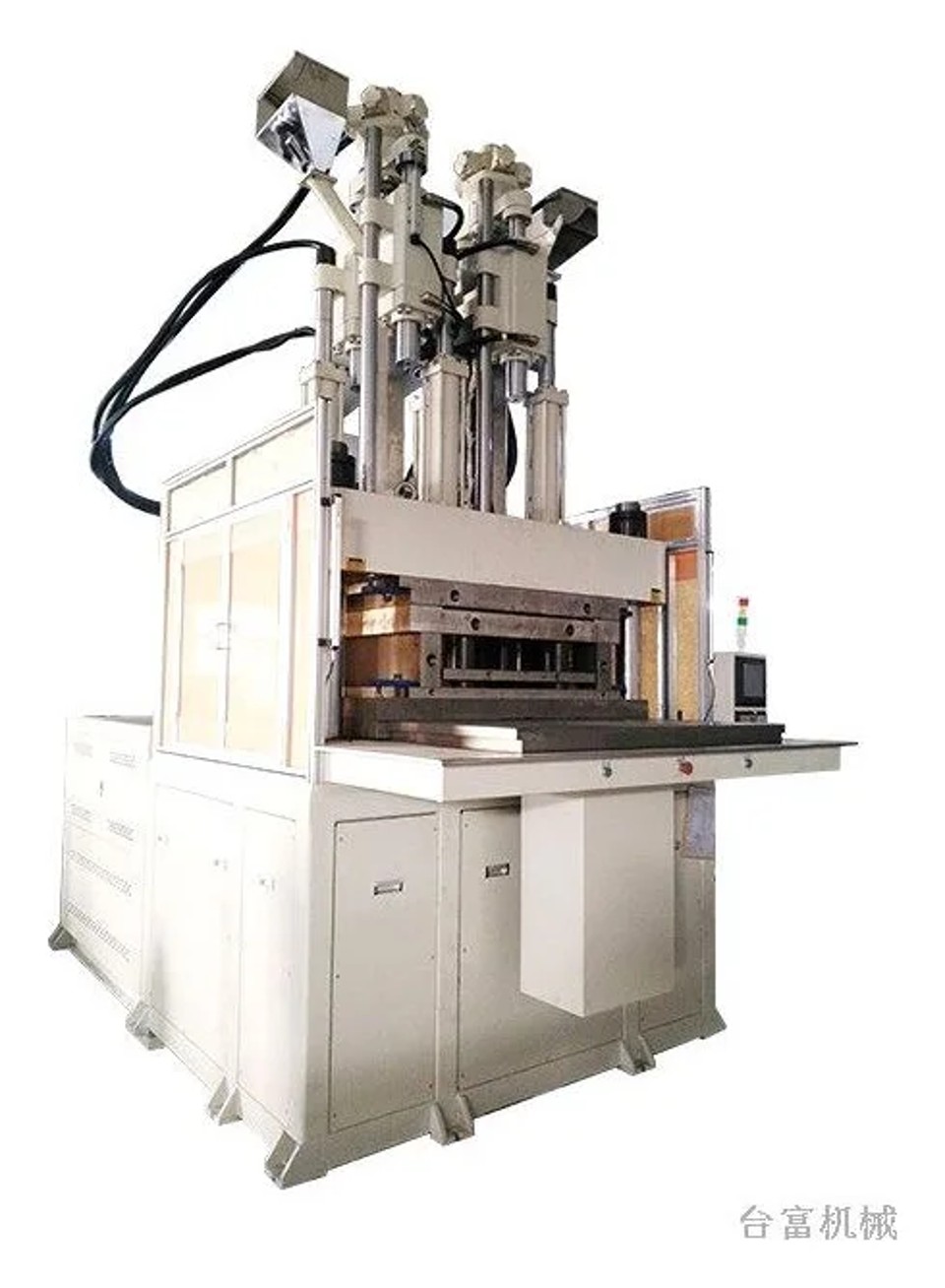

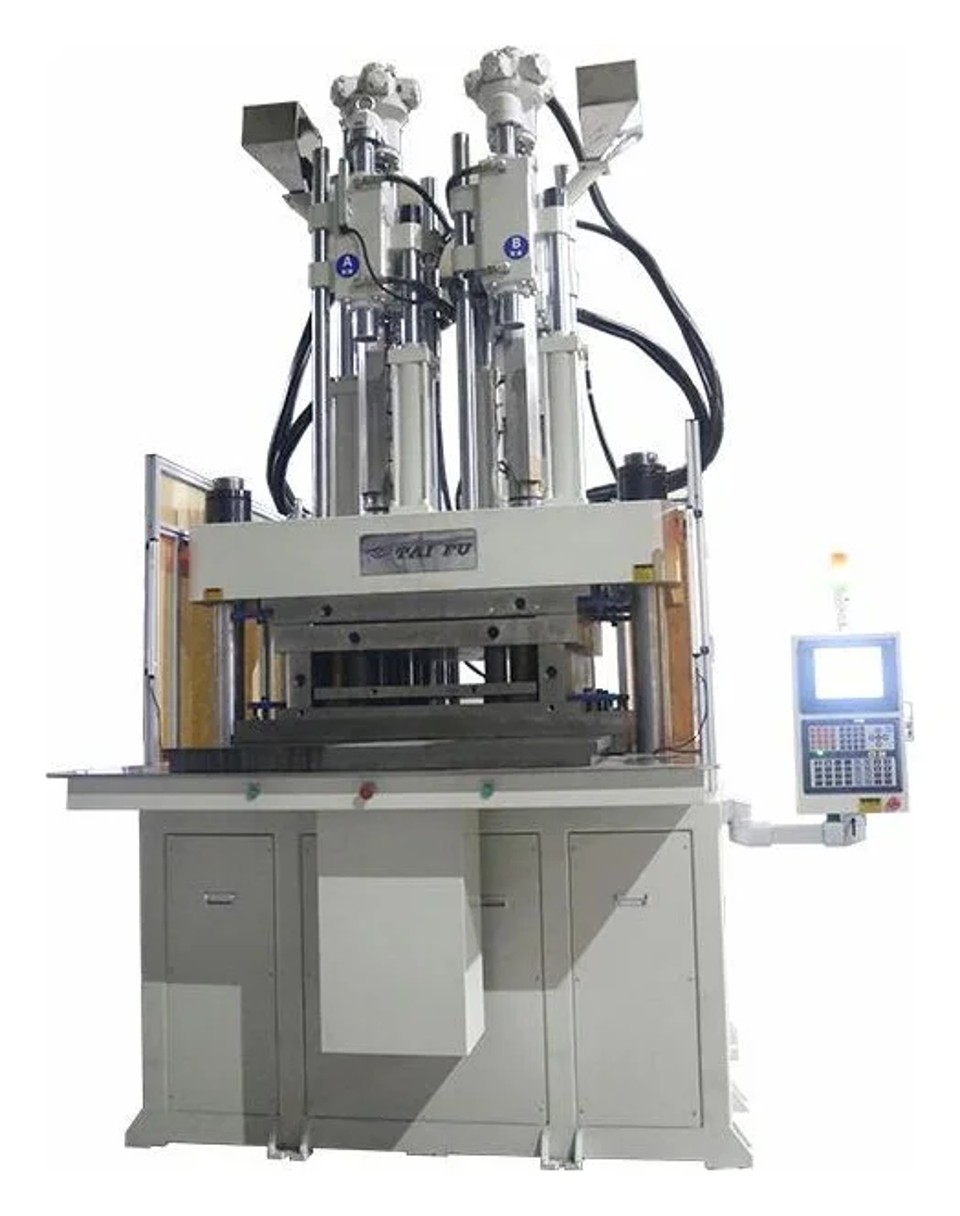

Two-Color Sliding Table Vertical Injection Molding Machine TFV4-120S-2C

Two-color sliding table vertical machine with two upper moulds and two lower moulds on the slide, for two-color, two-material and overmolded parts. Light curtain and digital back pressure improve stability and safety.

Key features

• Two upper moulds on the upper platen and two lower moulds on the sliding table; two-color, two-material or overmolded parts are completed as the slide shuttles out.
• Vertical four-tie-bar direct-pressure clamping and vertical injection; Chinese/English controller with full-screen display and dual proportional pressure and flow control.
• Light curtain and digital back pressure for flexible, stable and safe production.
• Sliding plate and base made of ductile iron, separated by steel strips at contact surfaces and fitted with lubrication holes to minimize wear and deformation and keep the slide accurate.
• Ejector configurable for each slide with adjustable stroke; ejection force, ejector speed and ejection count can be preset.
