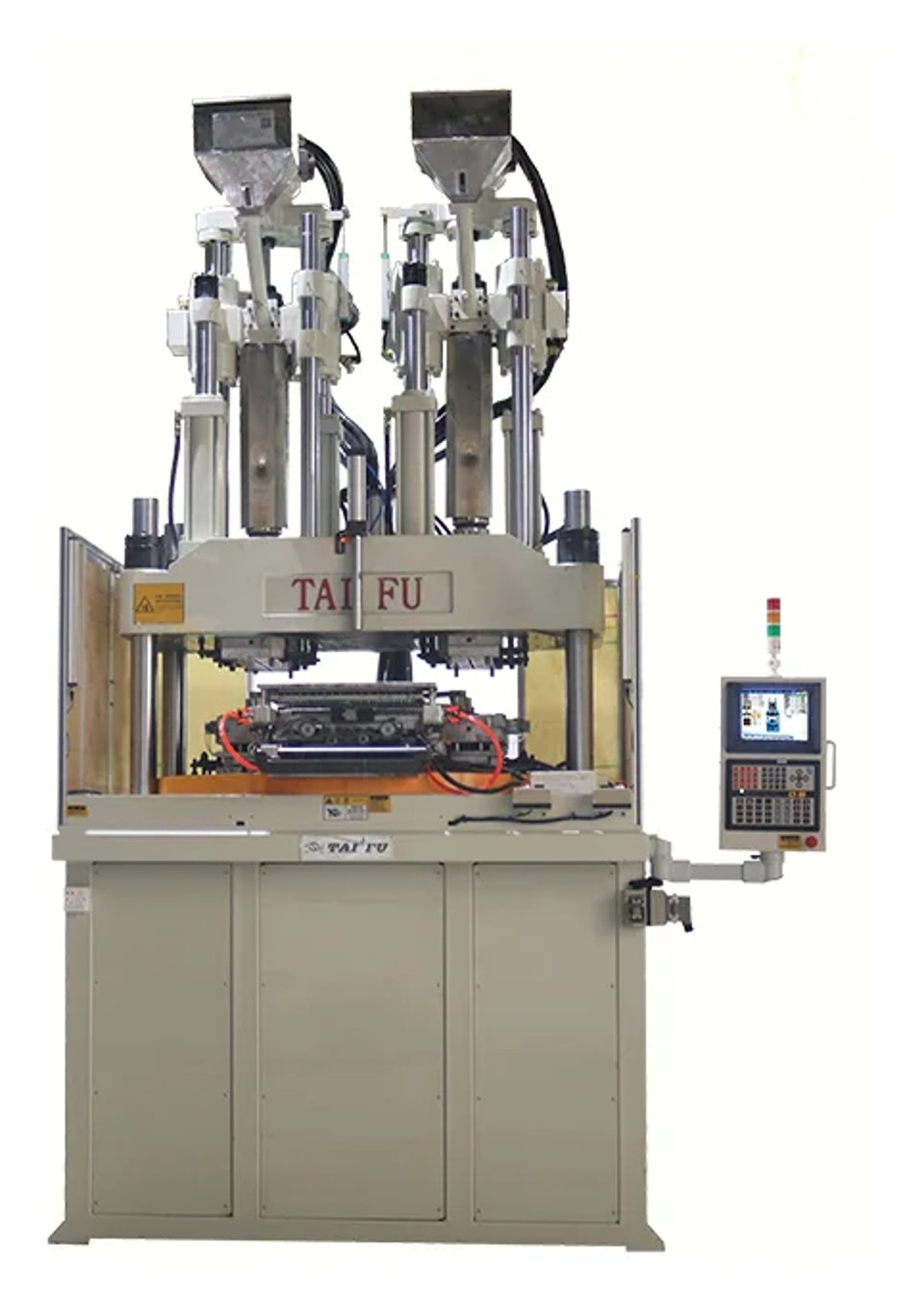

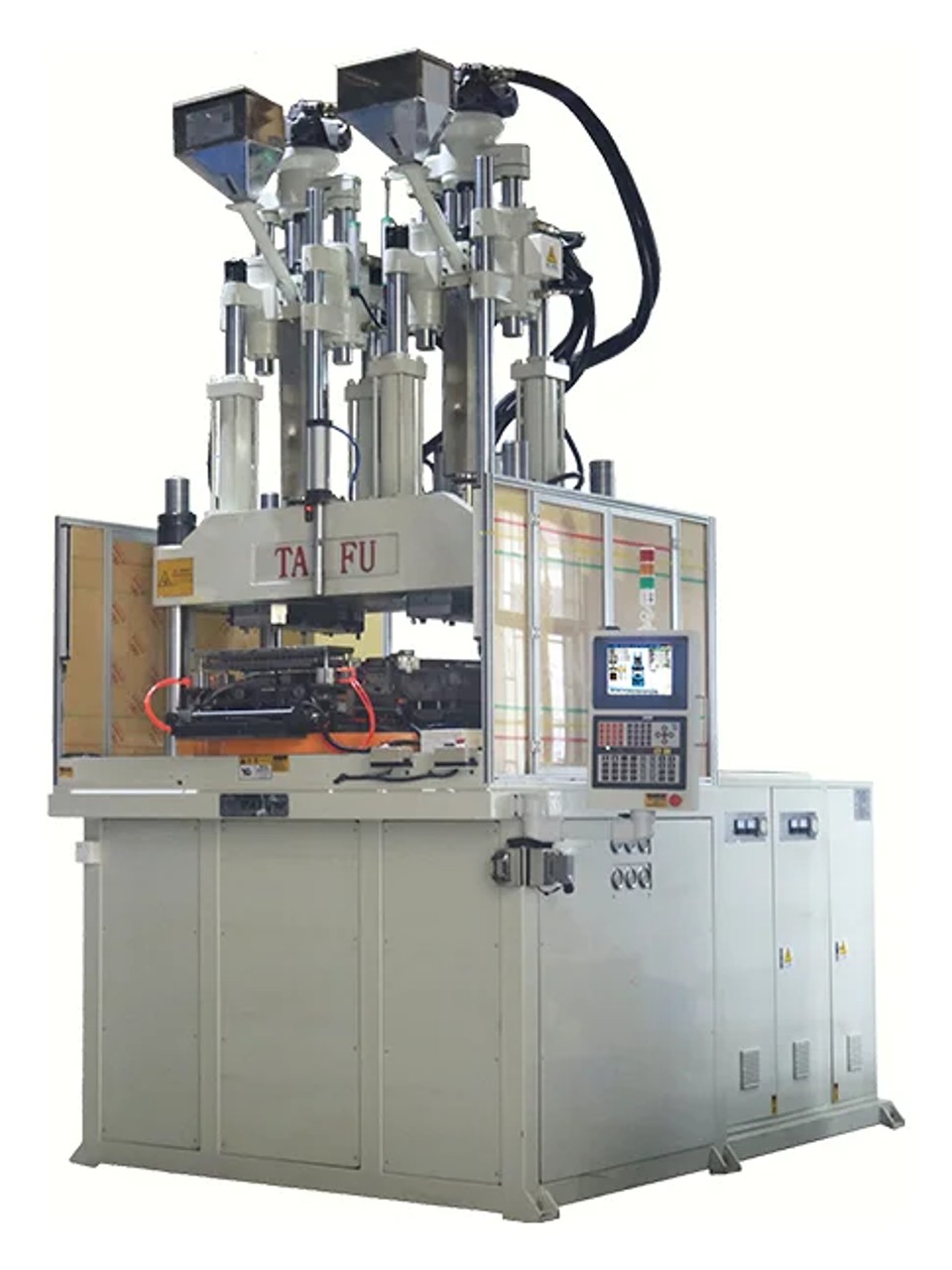

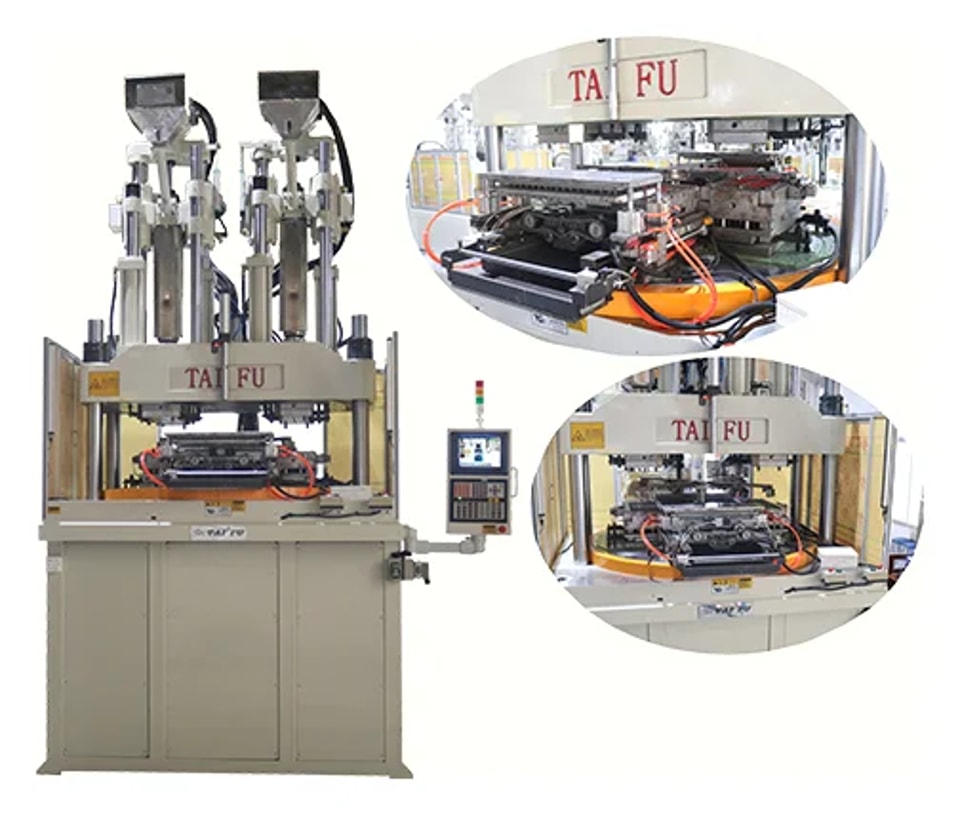

Two-Color Rotary Vertical Injection Molding Machine with Turret TFV4-170R4-2C
Two-injection rotary table machine with a servo-controlled turret for insert molding and two-color molding. Turret stations and air/water circuits can be configured to the mould.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
Two-injection rotary table machine with a servo-controlled turret for insert molding and two-color molding. Turret stations and air/water circuits can be configured to the mould.
Key features
- Two-injection rotary series for insert molding and two-color molding.
- Servo-controlled turret with high indexing accuracy; 2-, 3- or multi-station turrets available and customizable.
- Turret fitted with multiple air and water circuits to suit different moulds.
- 180° alternating operation: the operator removes parts and loads inserts at a fixed position.
- Servo-driven rotary table with mechanical positioning for accurate, fast mould closing.
- Optional two independent clamping systems with separate moving platens, allowing two-color or two-material molding with different moulds.
Applications
Typical parts
- Two-color (2K) parts
- Insert-molded parts
Options
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
Full specifications for TFV4-170R4-2C depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
Request a machine proposal
