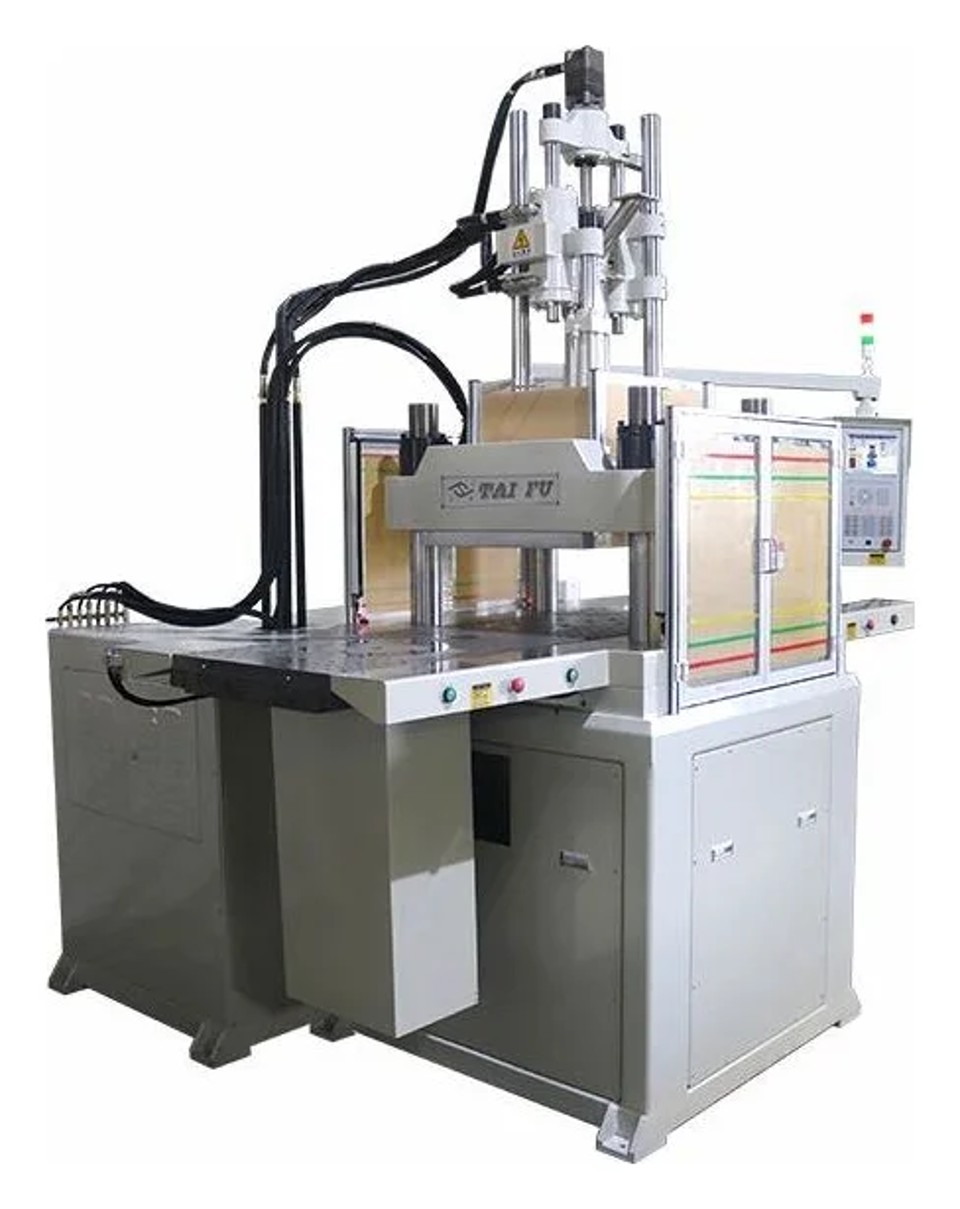

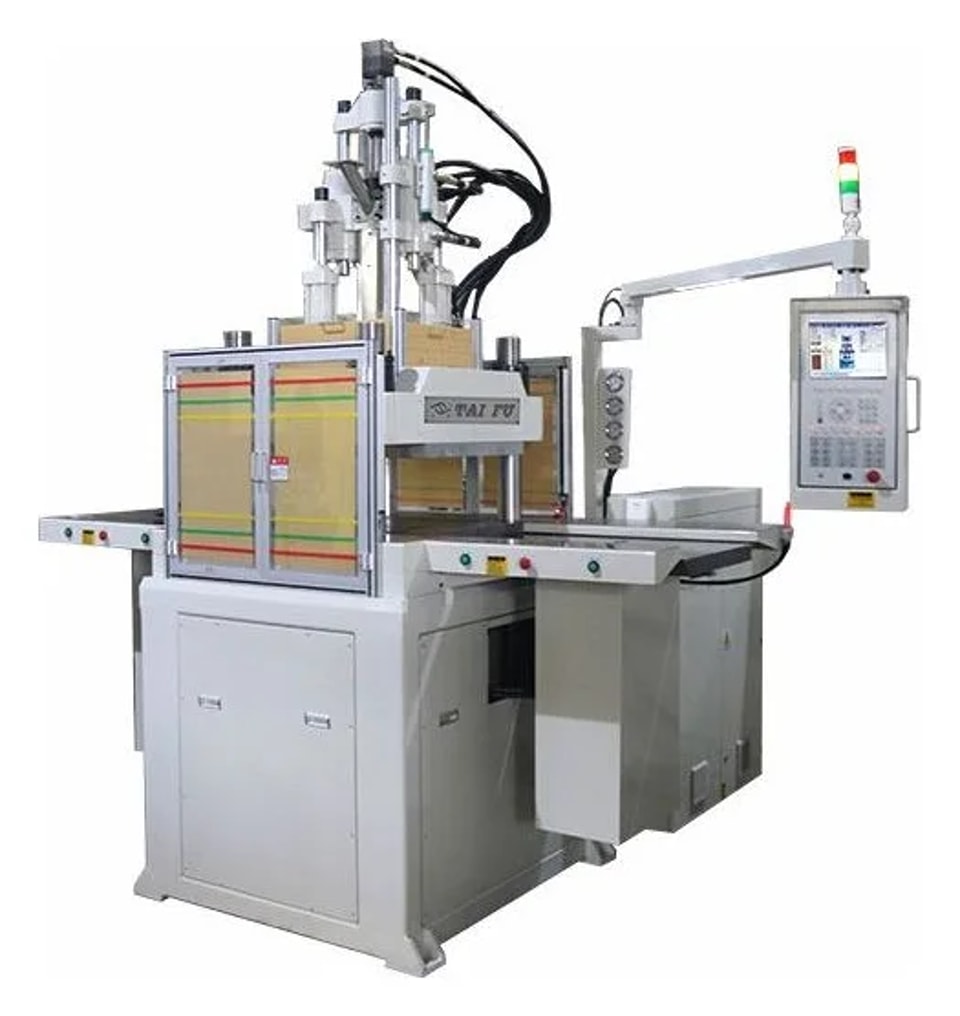

Double Sliding Table Vertical Injection Molding Machine TFV4-160SD

Double sliding table vertical machine with pressure tracking compensation and secondary holding pressure, for high-precision overmolding of engineering plastics onto metal parts such as kitchenware handles and automotive filter screens.

Key features

• Vertical four-tie-bar direct-pressure clamping and vertical injection; fast mould closing with slow, low-pressure clamping to protect the mould.
• Built-in pressure tracking compensation for fast, stable injection, with secondary injection holding pressure for high-quality, high-precision parts.
• Multi-stage temperature, injection speed, back pressure and screw speed with stepless adjustment.
• Fixed lower mould and moving upper mould for good insert positioning, with part ejector.
• Nitrided steel screw and barrel driven by a high-torque hydraulic motor, with multi-stage injection pressure for good plasticizing.
• Electrical safety interlocks prevent unintended movements and protect the operator.
• Two lower moulds slide alternately left and right: one molds while inserts are loaded into the other outside the mould area.
• Hydraulic options: semi-closed loop, closed loop, servo or high-speed injection; expandable program for automatic insert loading and part removal.
