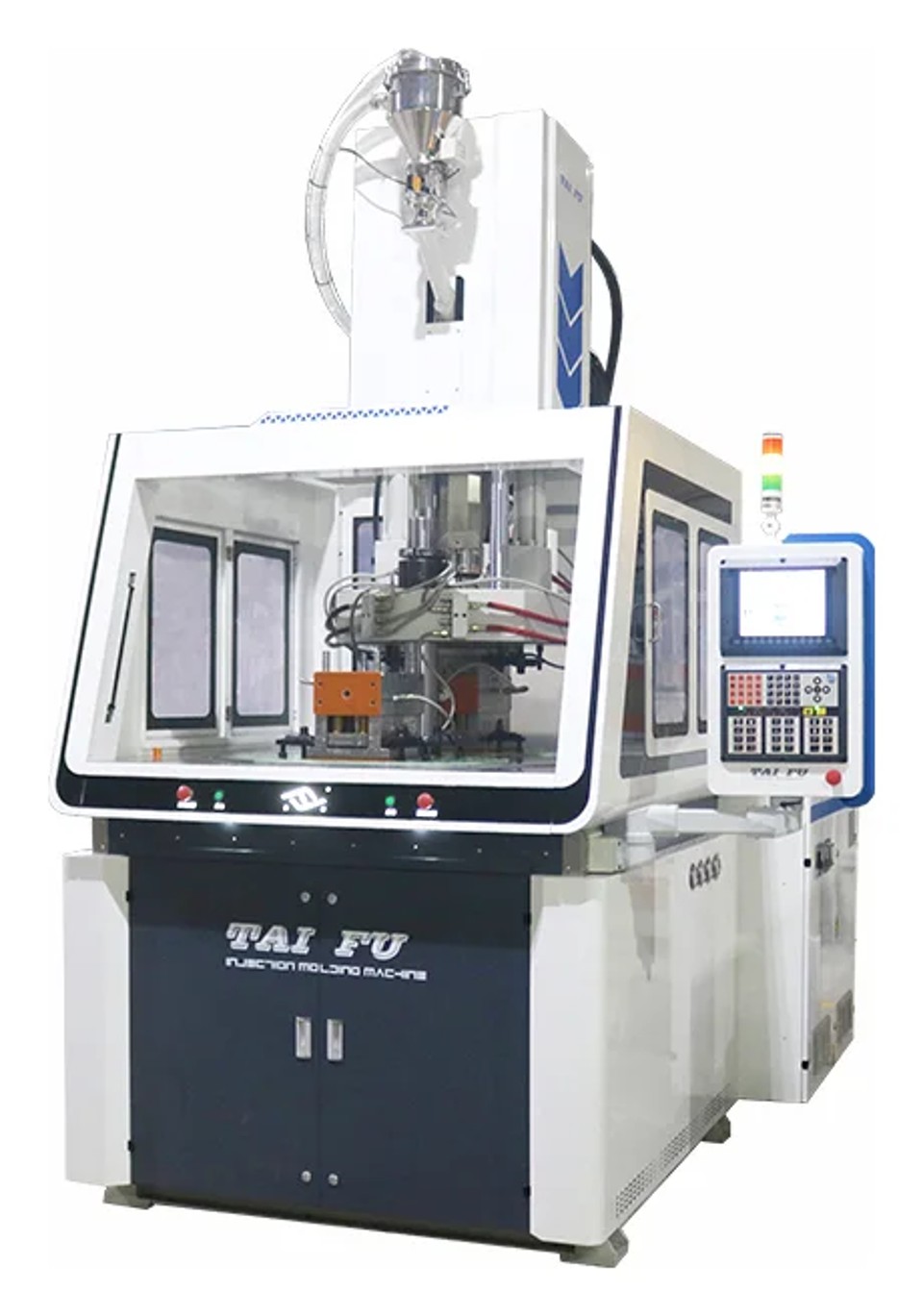

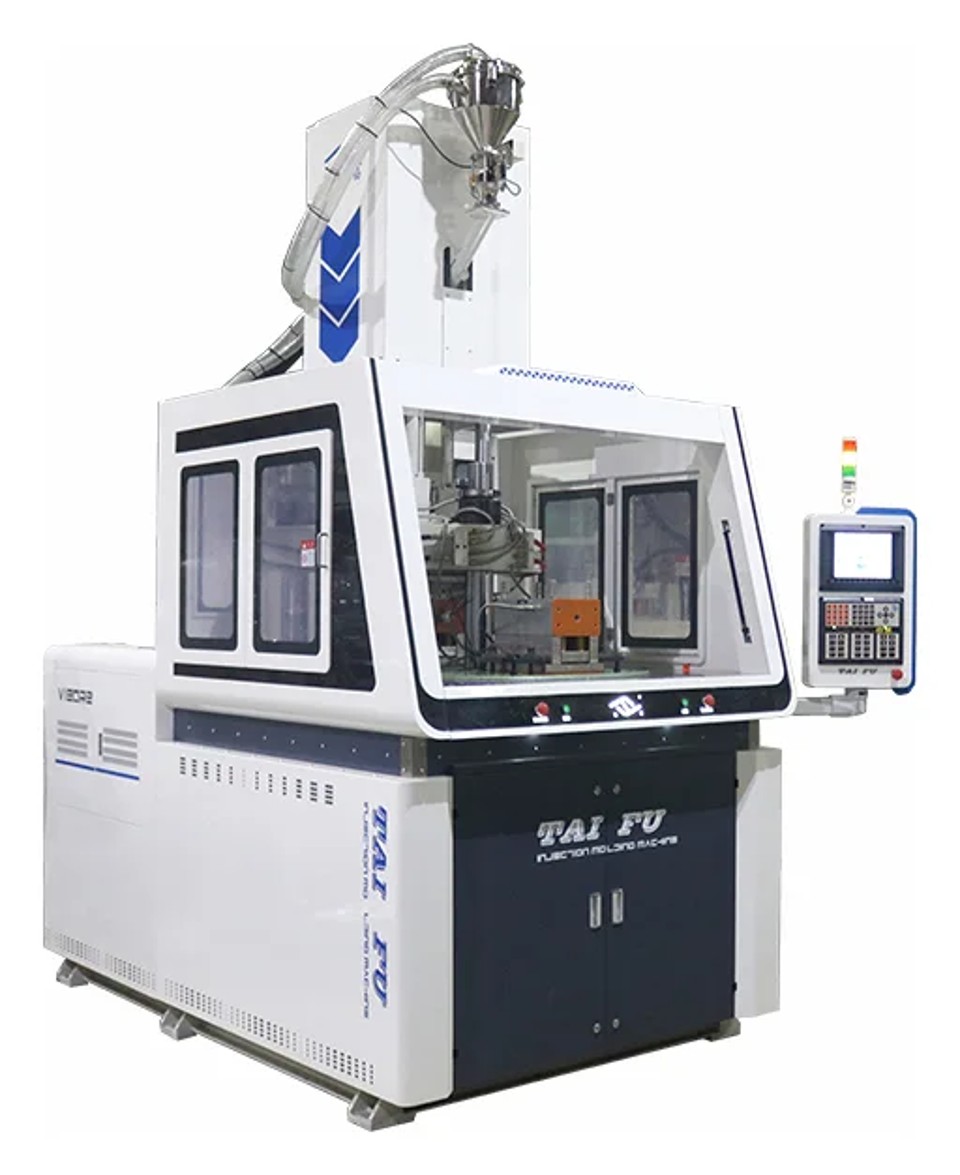

Automatic Rotary Table Vertical Injection Molding Machine Series

Automatic rotary table vertical series with shot weights of 49–1402 g, designed for insert molding and parts with long cooling or insert-placement times. An independent servo motor drives the table indexing.

Key features

• Automatic rotary table series with shot weights from 49 g to 1402 g.
• Vertical clamping and vertical injection for insert molding and multi-purpose molding; two- or three-station table design increases efficiency.
• Especially suited to high-volume parts with long cooling times or extra time needed for placing inserts.
• 180° alternating rotation: parts are removed and inserts loaded at a fixed operating position.
• Table locked by a locating pin after each rotation for high-precision positioning and accurate mould closing.
• Table indexing driven by an independent servo motor for high positioning accuracy.
• Two stations as standard; three or four stations available on request.
• Ready for automatic insert-loading and part-removal devices for fully automatic operation.
