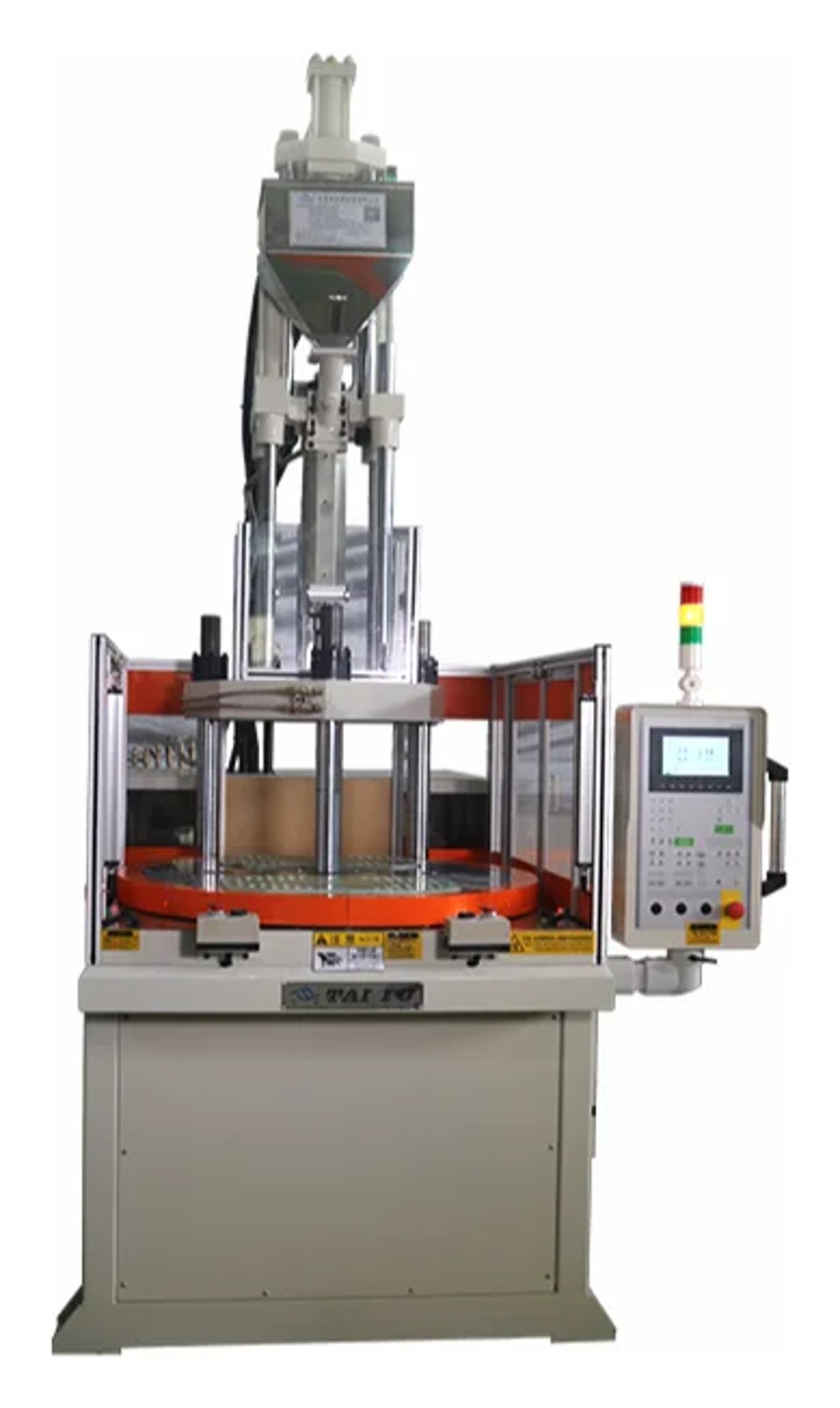

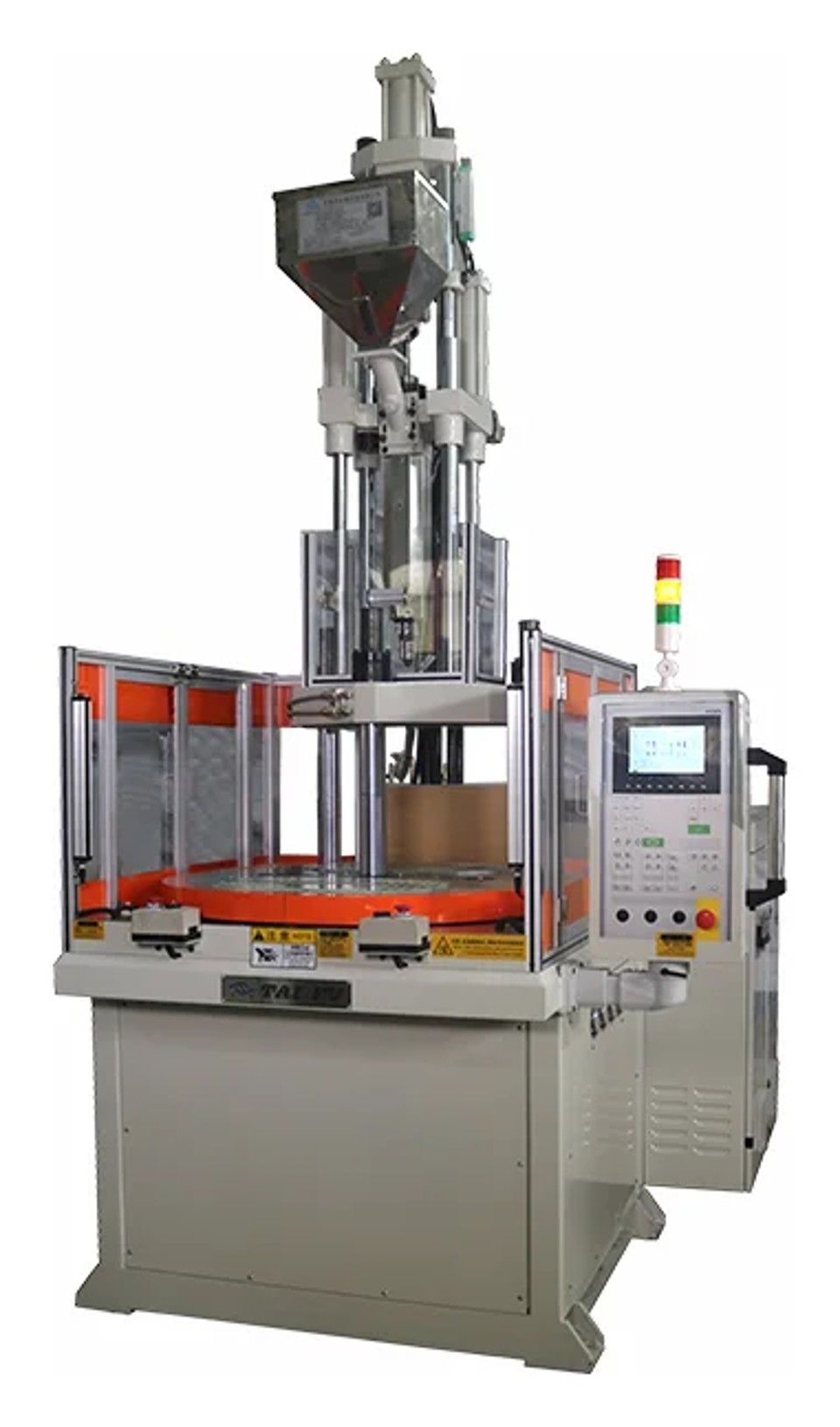

High-Speed Rotary Table Vertical Injection Molding Machine TFV4-55R2-SP
Compact high-speed two-station rotary table vertical machine with 600 mm/s injection, especially suited to metal-insert overmolding and thin-wall parts.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
Compact high-speed two-station rotary table vertical machine with 600 mm/s injection, especially suited to metal-insert overmolding and thin-wall parts.
Key features
- Direct-pressure clamping for even clamping force distribution and high platen parallelism; simple structure and small footprint.
- High-speed injection up to 600 mm/s for fast molding and short cycles.
- 180° alternating rotary table with generous working space and easy insert loading, for high output.
- Suited to multi-purpose molding, especially metal-insert overmolding, and to ultra-thin-wall parts below 0.1 mm.
- Imported hydraulic and electrical components; compatible with a Bosch servo-valve closed-loop injection system for precise shot position and high repeatability.
- Controller with automatic fault display; three-side guarding with electrical and hydraulic protection.
Applications
Typical parts
- Metal-insert overmolded parts
- Ultra-thin-wall parts
Options
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
| Injection speed | Up to 600 mm/s |
| Thin-wall capability | Wall thickness below 0.1 mm |
Full specifications for TFV4-55R2-SP depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
Request a machine proposal
