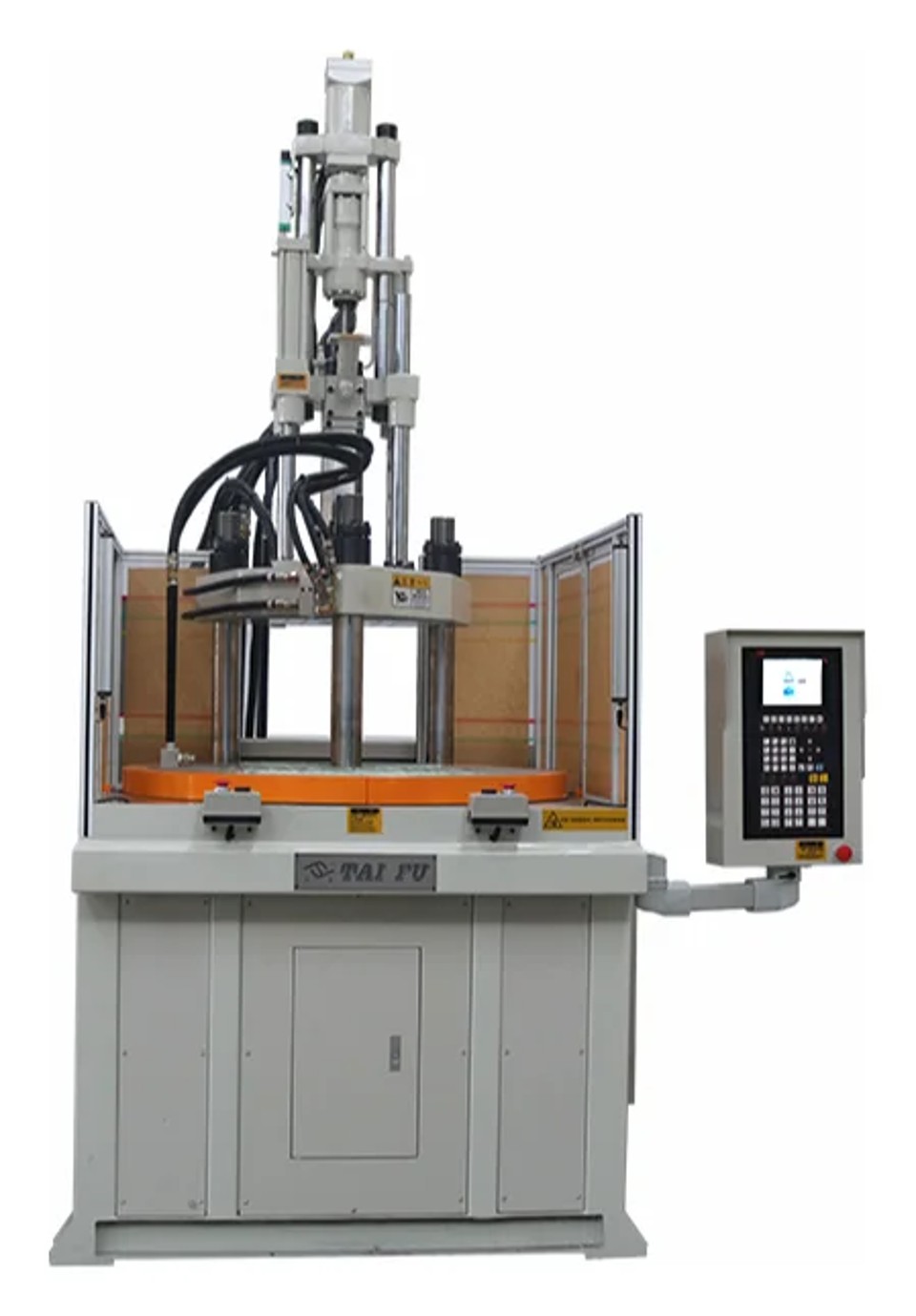

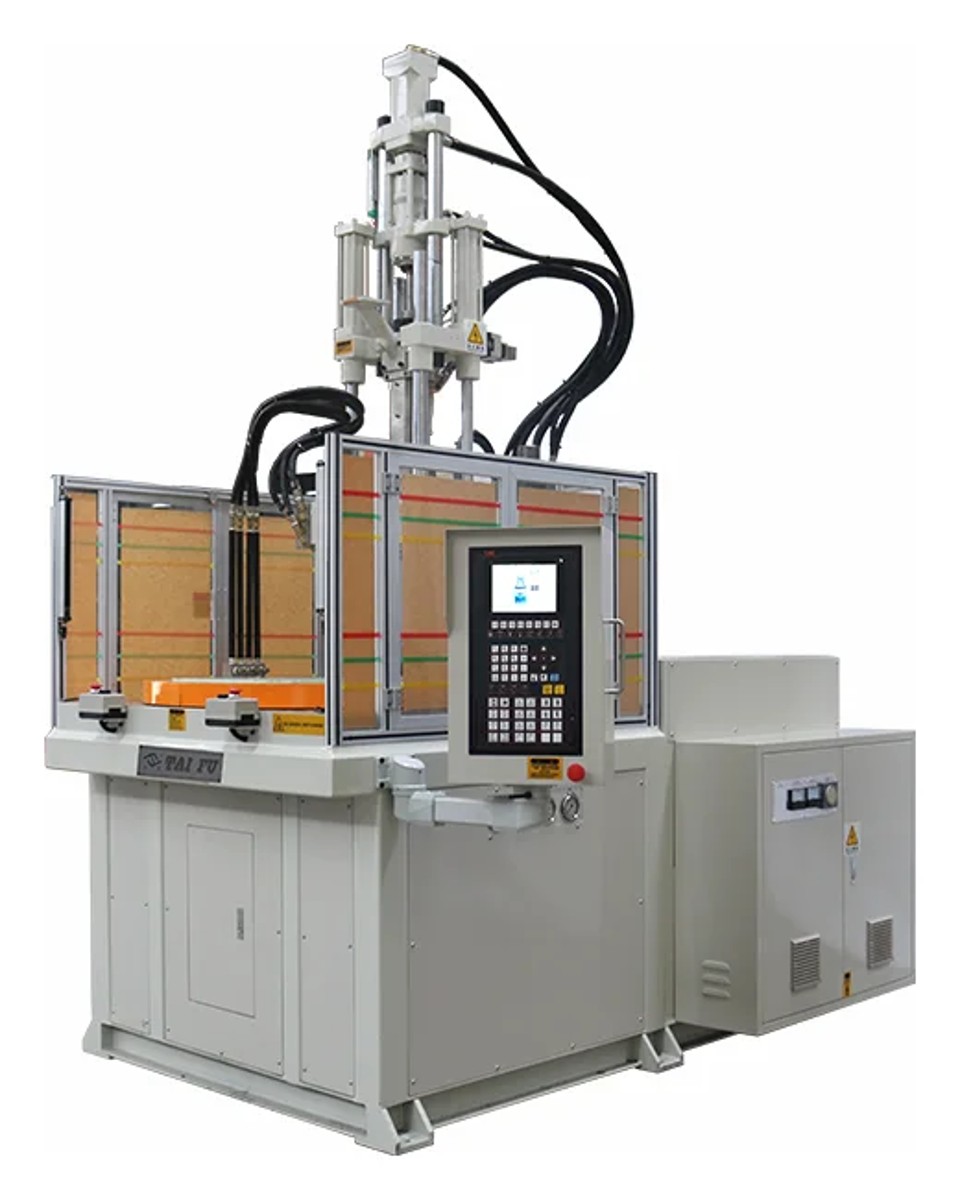

High-Speed Rotary Table Vertical Injection Molding Machine TFV4-85R2-SP

High-speed two-station rotary table vertical machine with 600 mm/s injection and optional Bosch servo-valve closed-loop injection. Built for thin-wall insert-molded connectors and electronic parts.

Key features

• Direct-pressure clamping for even clamping force distribution and high platen parallelism.
• High-speed injection up to 600 mm/s for fast molding and short cycles.
• 180° alternating rotary table with generous working space and easy insert loading, for high output.
• Water jacket in the table centre supplies cooling water to the lower moulds.
• Suited to ultra-thin-wall parts below 0.1 mm.
• Imported hydraulic and electrical components; compatible with a Bosch servo-valve closed-loop injection system for precise shot position and high repeatability.
• Servo hydraulic system for energy savings, higher productivity and better part yield.
• Industrial controller with real-time data monitoring and remote, networked machine management.
• Two-station table as standard; three or four stations available on request.
• Controller with automatic fault display; three-side guarding with electrical and hydraulic protection.
