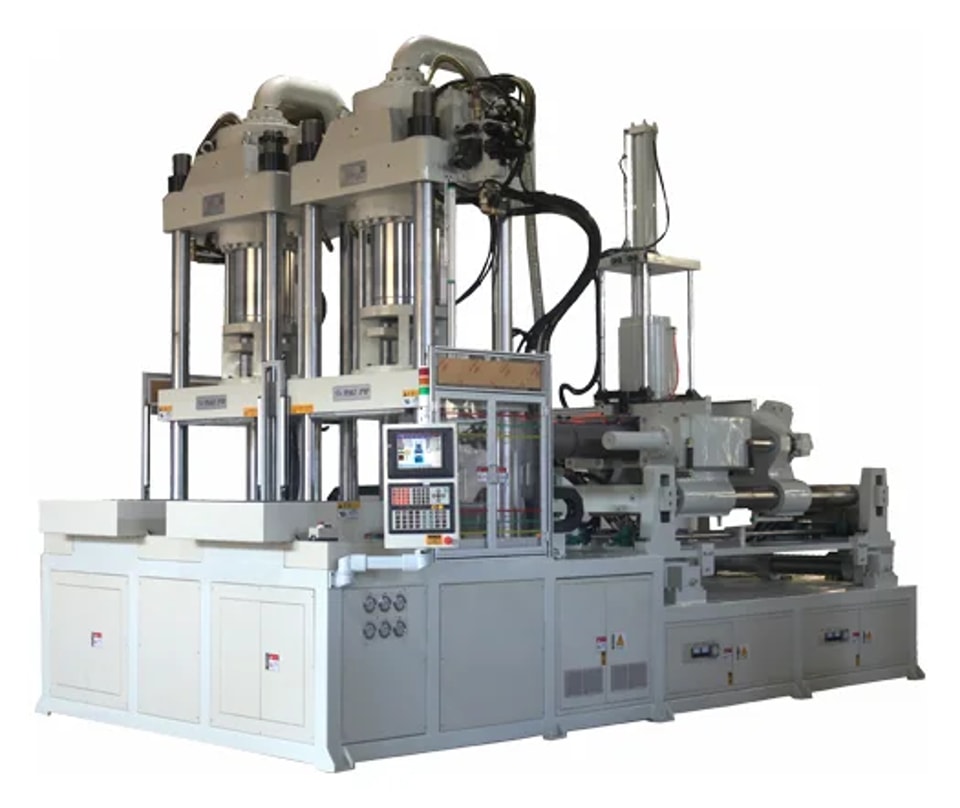

Side-Injection Double Sliding Table BMC Vertical Injection Molding Machine TFV4-220SD-BMC
BMC vertical injection molding machine with vertical clamping, horizontal side injection and one upper / two lower moulds. Insulated platens and a hydraulic stuffer make it suitable for continuous thermoset production.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
BMC vertical injection molding machine with vertical clamping, horizontal side injection and one upper / two lower moulds. Insulated platens and a hydraulic stuffer make it suitable for continuous thermoset production.
Key features
- Vertical clamping with horizontal (side) injection.
- Dedicated barrel and screw set for wet BMC bulk thermoset molding.
- Hydraulic stuffer on the injection cylinder, connected directly to the barrel feed throat, so feeding force cannot deform the barrel.
- Special platen design with standard thermal insulation cooling plate and glass-fibre insulation board, keeping mould heat away from the machine to extend its service life.
- Four-tie-bar, two-station layout with one upper and two lower moulds for easy operation and higher output.
- Imported hydraulic components for fast response, high precision and durability.
Applications
Typical parts
- BMC coils
- BMC motor parts
- Automotive parts
Options
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
Full specifications for TFV4-220SD-BMC depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
