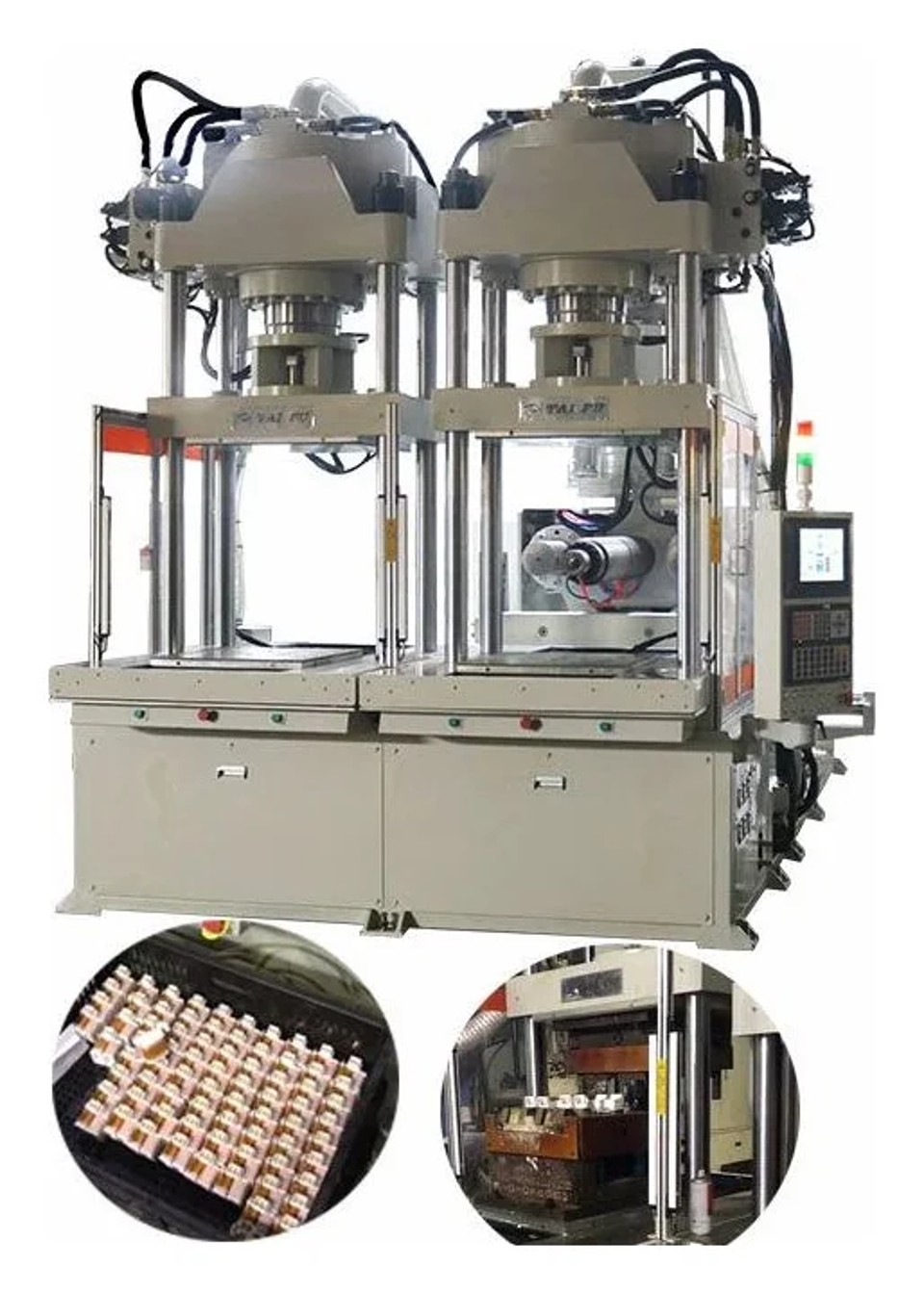

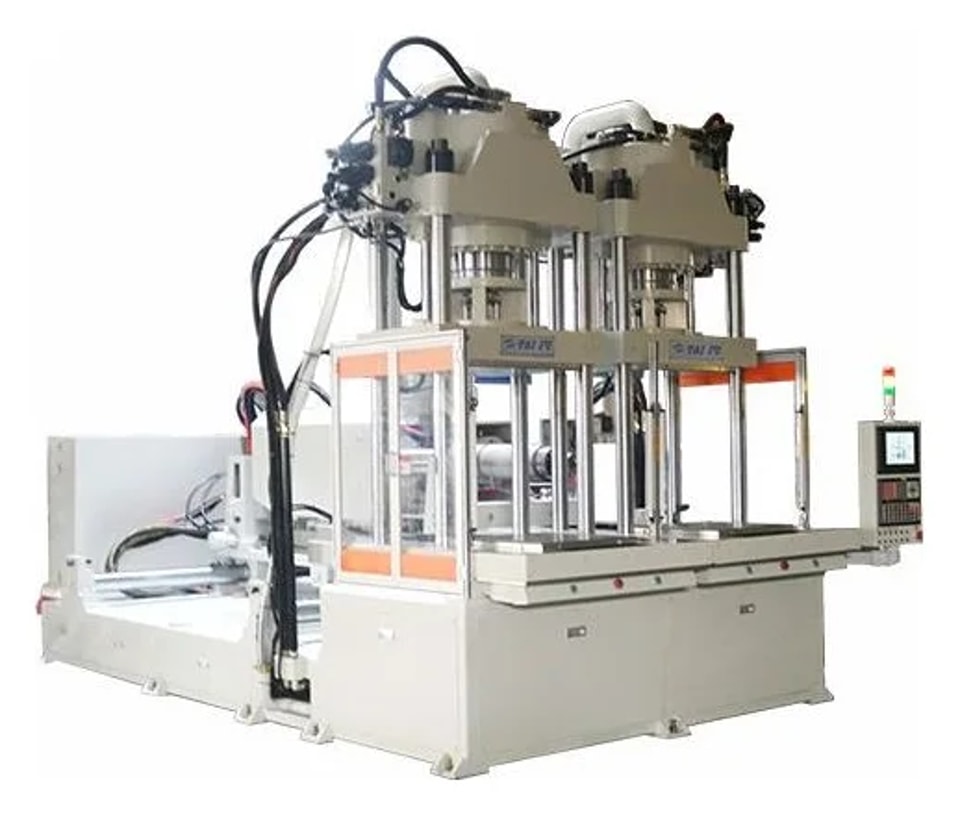

Sliding Table BMC Vertical Injection Molding Machine TFH4-120S-BMC
Two-mould BMC machine with vertical clamping and a horizontal injection unit that traverses between two moulds. Designed for appliance stator and rotor coils and other motor parts.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
Two-mould BMC machine with vertical clamping and a horizontal injection unit that traverses between two moulds. Designed for appliance stator and rotor coils and other motor parts.
Key features
- Vertical clamping with horizontal injection.
- Two-mould operation: the injection unit traverses left and right to fill the two moulds alternately.
- Hydraulic options: semi-closed loop, closed loop, servo or high-speed injection.
- Imported hydraulic components for fast response, high precision and durability.
- Hydraulic stuffer connected directly to the barrel feed throat, preventing barrel deformation during feeding.
- Machine configuration can be customized to the characteristics of the BMC material.
Applications
Typical parts
- Appliance stator and rotor coils
- Motor parts
Options
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
Full specifications for TFH4-120S-BMC depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
Request a machine proposal
