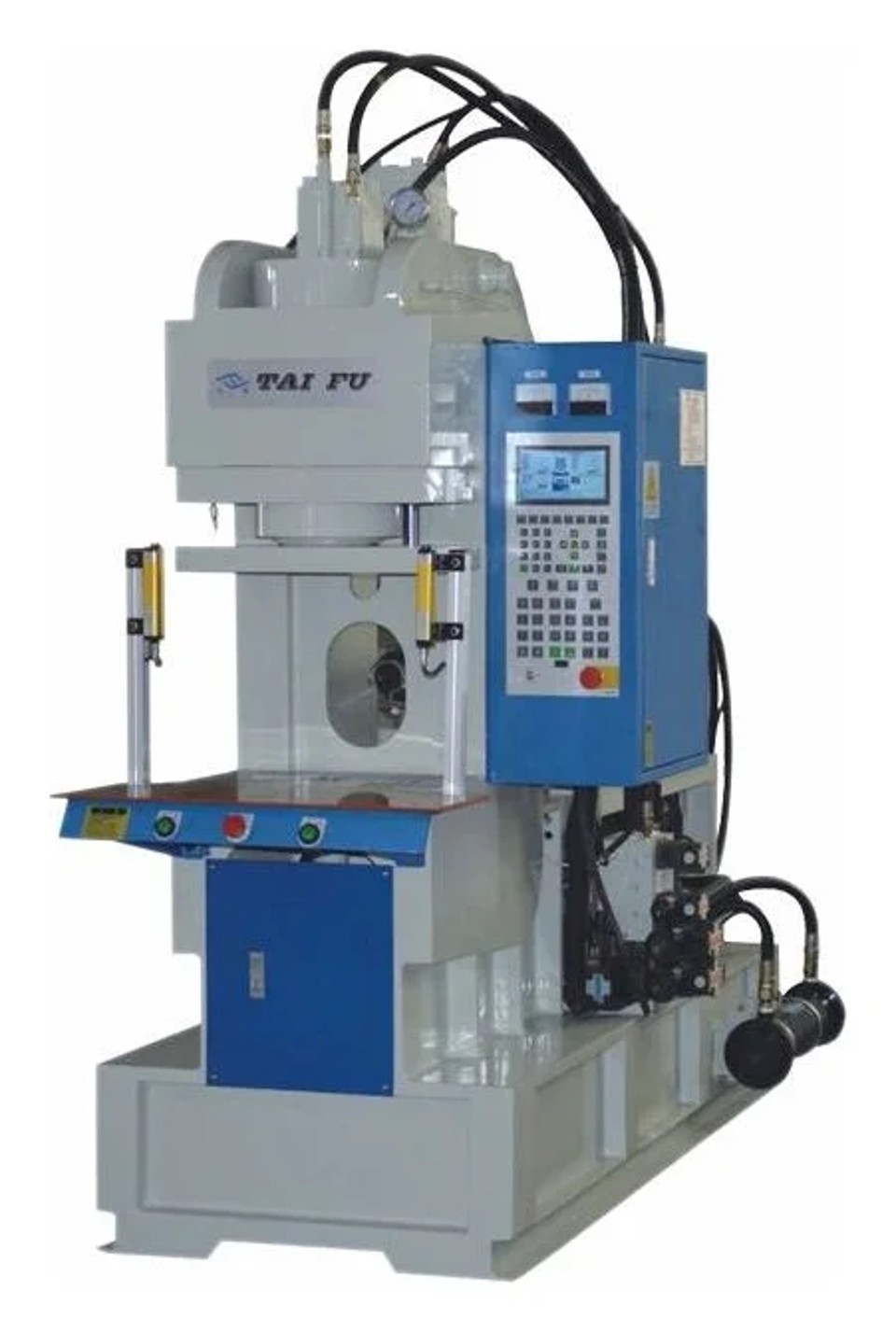

C-Frame Vertical Injection Molding Machine TF-VL85C
C-frame vertical machine with vertical clamping and horizontal side injection; the open frame gives operators free access to the mould. Double sliding or rotary tables can be added for plug and cable overmolding.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
C-frame vertical machine with vertical clamping and horizontal side injection; the open frame gives operators free access to the mould. Double sliding or rotary tables can be added for plug and cable overmolding.
Key features
- Vertical clamping with horizontal side injection.
- Three- or four-zone barrel temperature control.
- Tie-bar-free C-frame gives operators open access to the mould and raises productivity.
- Fixed lower mould and moving upper mould keep inserts in position for accurate parts.
- Infrared light curtain protects the mould during opening and closing.
- Double sliding table or rotary table can be added.
Applications
Typical parts
- Plugs
- Data cables and other wire products
Options
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
Full specifications for TF-VL85C depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
Request a machine proposal
