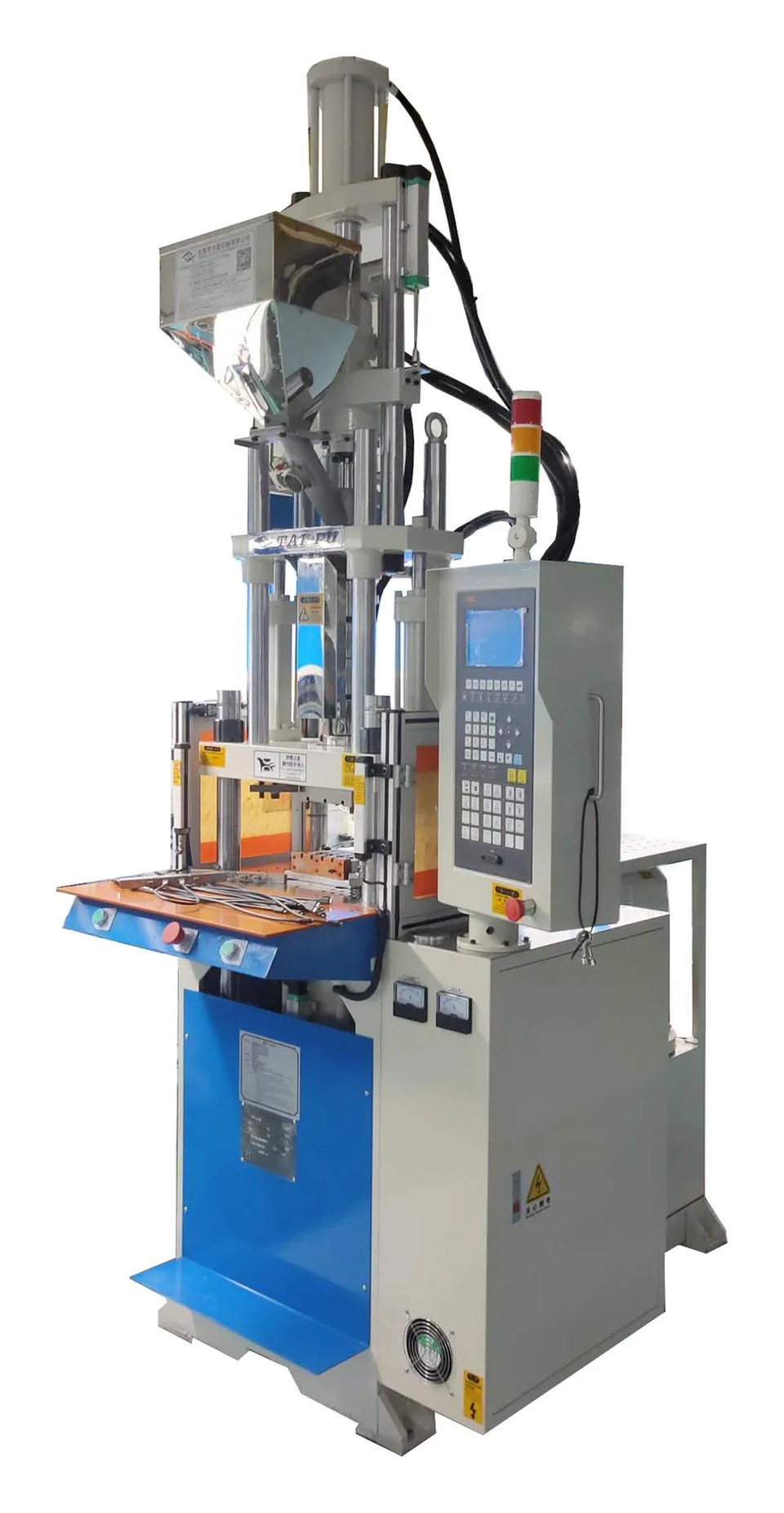

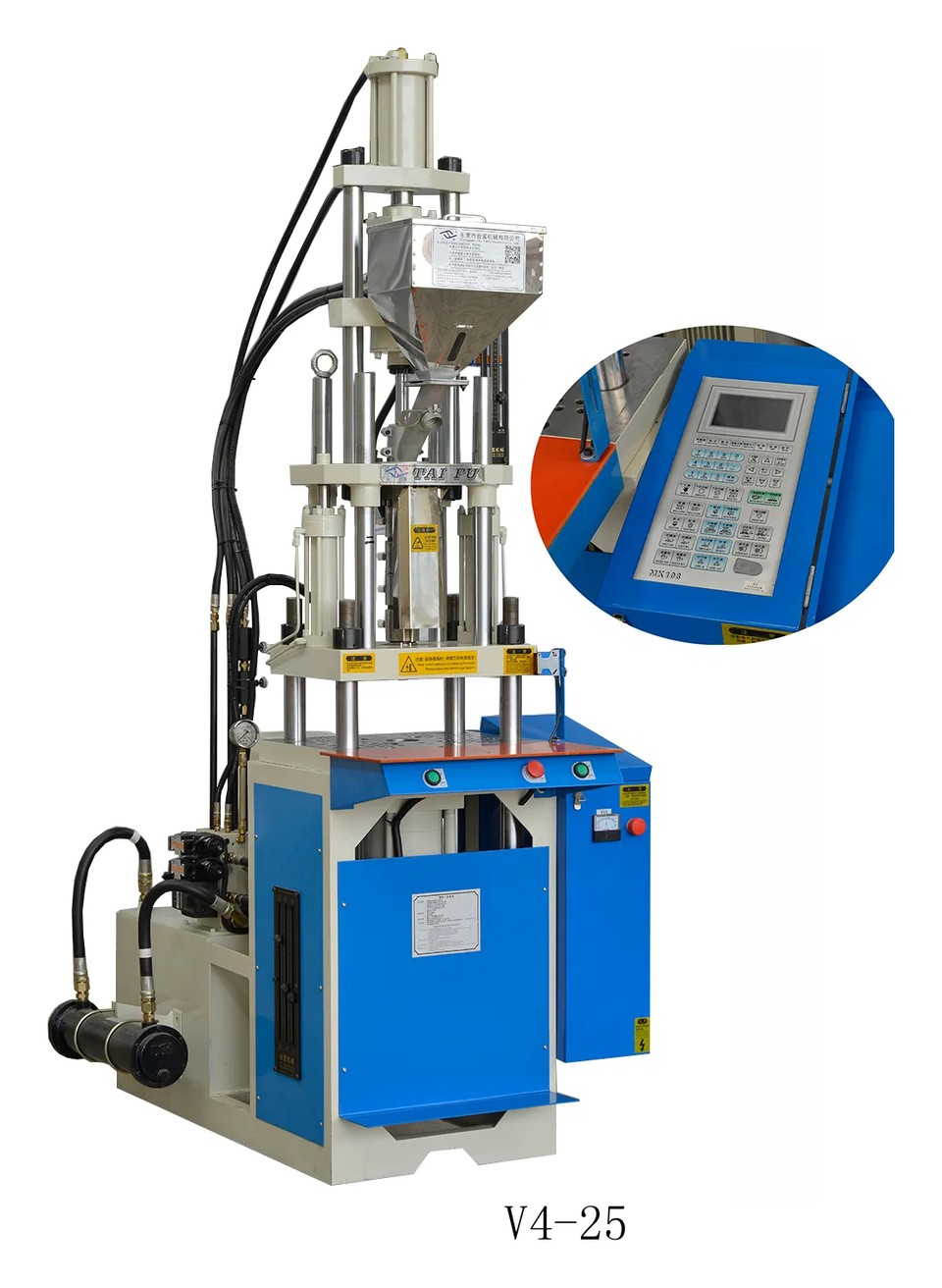

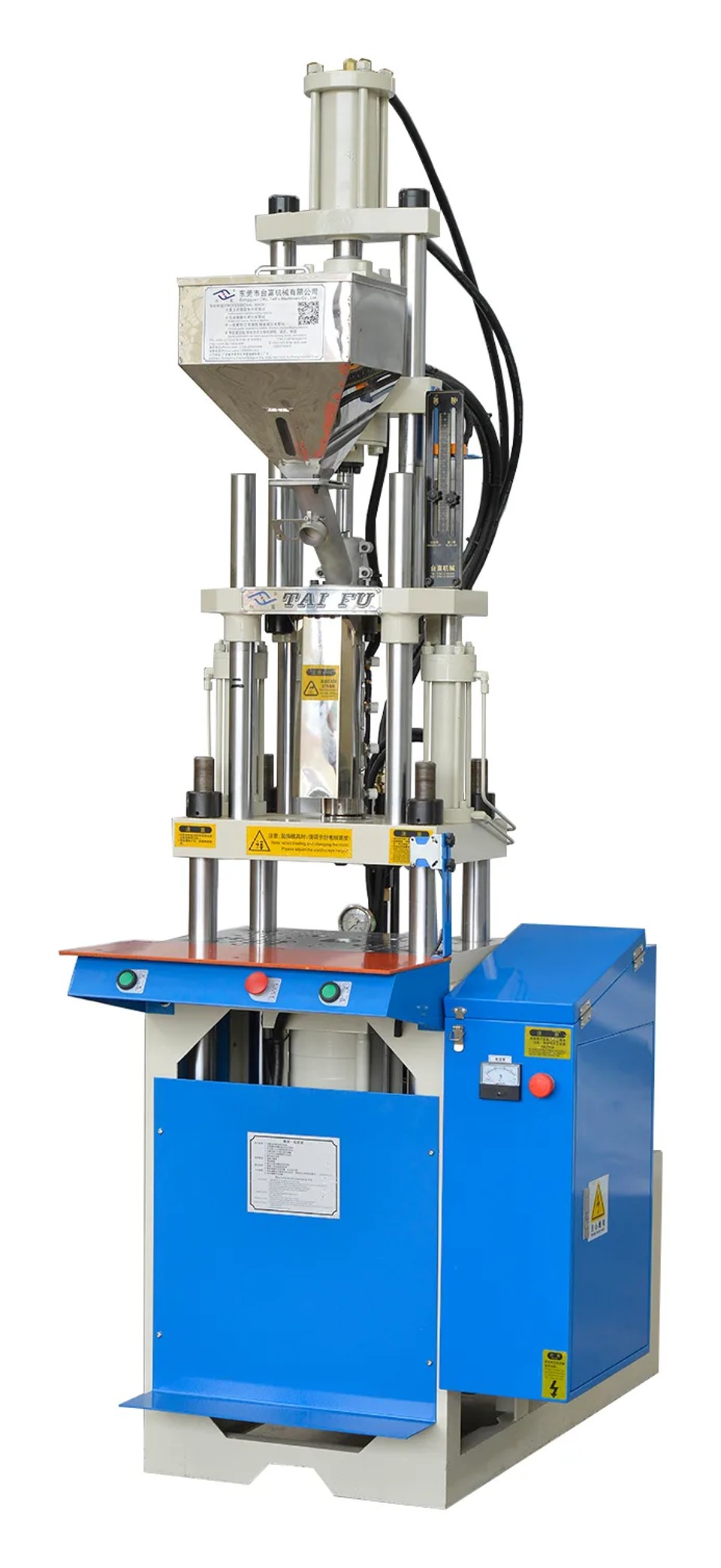

Compact Vertical Injection Molding Machine TFV4-25
Small four-tie-bar fixed-table vertical machine for overmolding plugs, data cables, screws, shoelace tips and LED parts.
Email:collinhou@dg-taifu.com
Phone:+86 136 5027 4786
Overview
Applications
Options
Specifications
Overview
Small four-tie-bar fixed-table vertical machine for overmolding plugs, data cables, screws, shoelace tips and LED parts.
Key features
- Four-tie-bar vertical clamping and vertical injection for small insert molding.
- Two- or three-zone temperature control with stepless adjustment of injection speed and back pressure.
- Fast clamping with slow, low-pressure mould closing; automatic emergency opening on clamping faults protects the mould.
- Fixed lower mould and moving upper mould for reliable insert positioning; hydraulic ejector for easy part removal.
- Durable Chinese-brand electrical and hydraulic components with low running noise.
- Control options: PLC, computer with single proportional (pressure) control, or computer with full proportional (pressure and flow) control.
- Single slide (1S) or double slide (2S) can be added for easier operation and higher output.
Applications
Typical parts
- Electrical plugs and data cables
- USB connectors
- Overmolded screws
- Shoelace tips
- Electronic parts
- LED lamp parts
Options
Configurations built

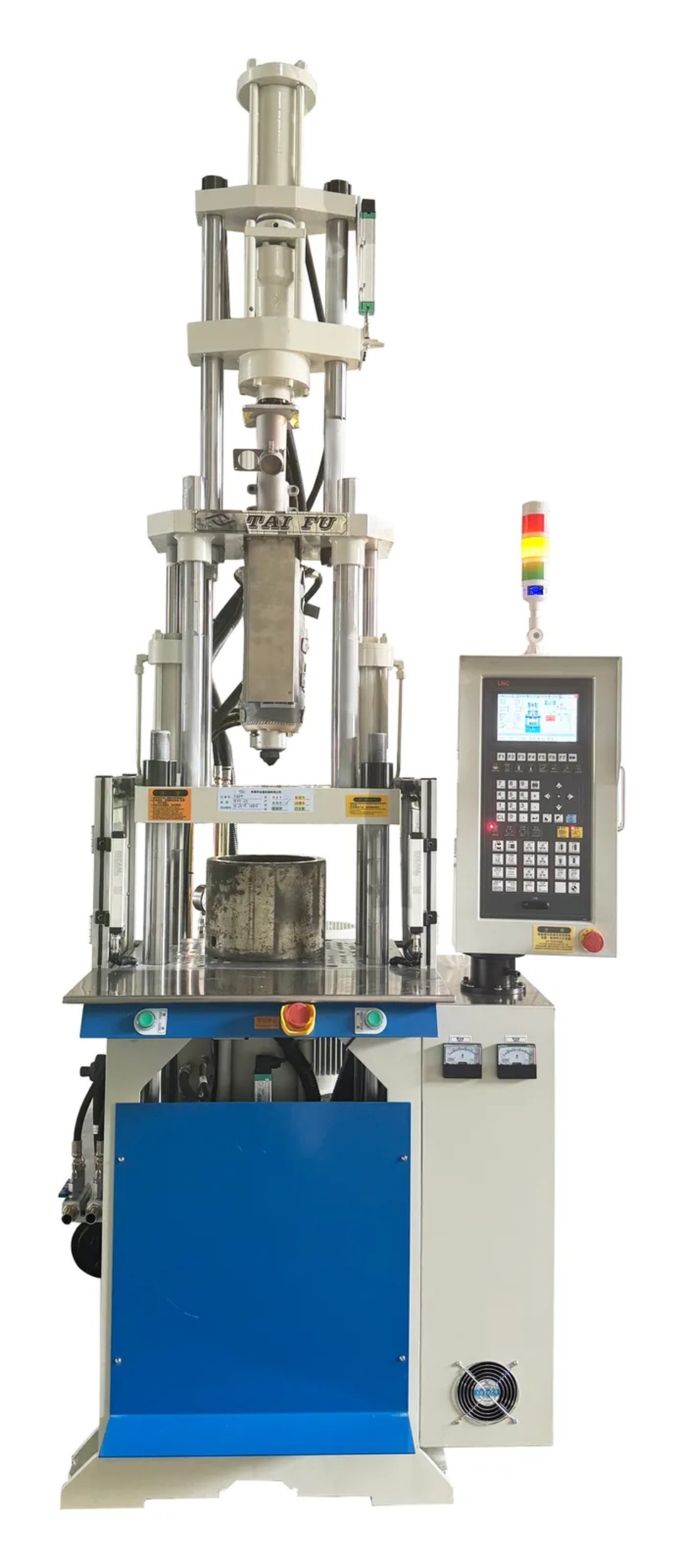

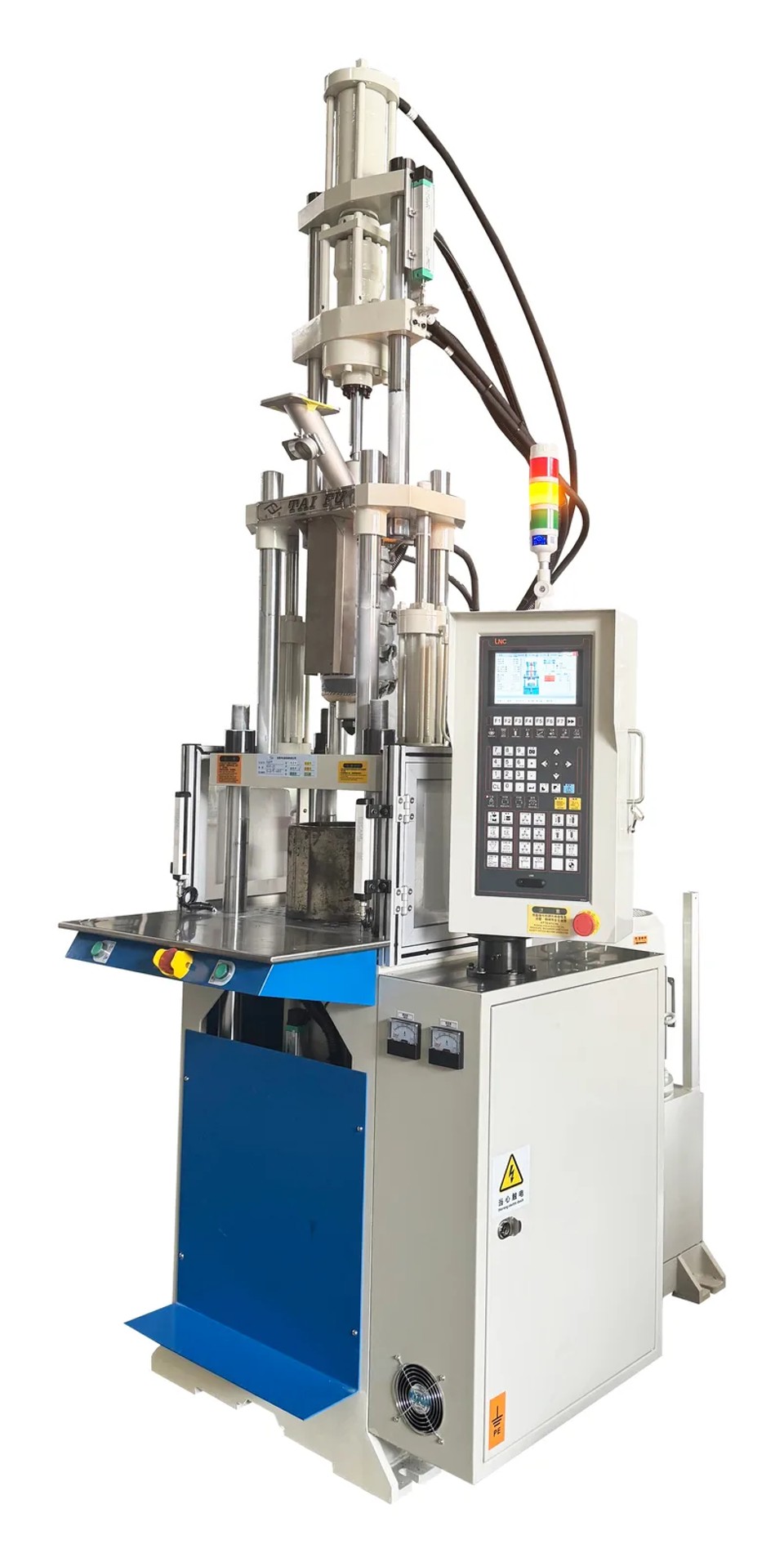

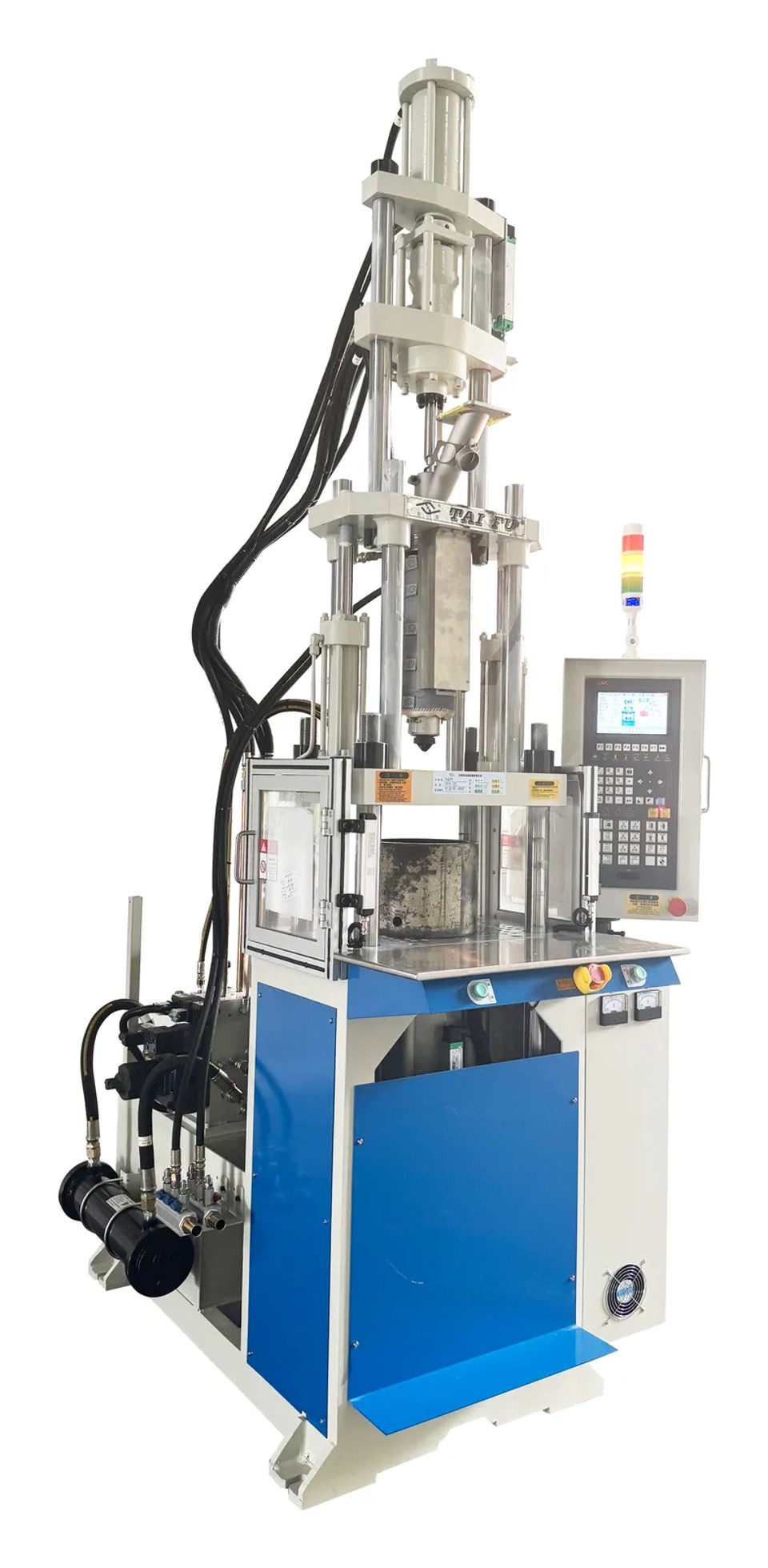

- Free-standing controller cabinet
Controller, injection unit size, number of table stations, safety-door type, machine color and automation are configured per order. Tell us your part and we will propose the configuration.
Specifications
| Clamping force (series range) | 15–1000 T |
Full specifications for TFV4-25 depend on the configuration. Request the datasheet with your mold size and shot weight.
Contact & RFQ
Get this machine configured for your part
Send the part drawing, insert and material. We reply with the configuration, options and a quotation.
Request a machine proposal
