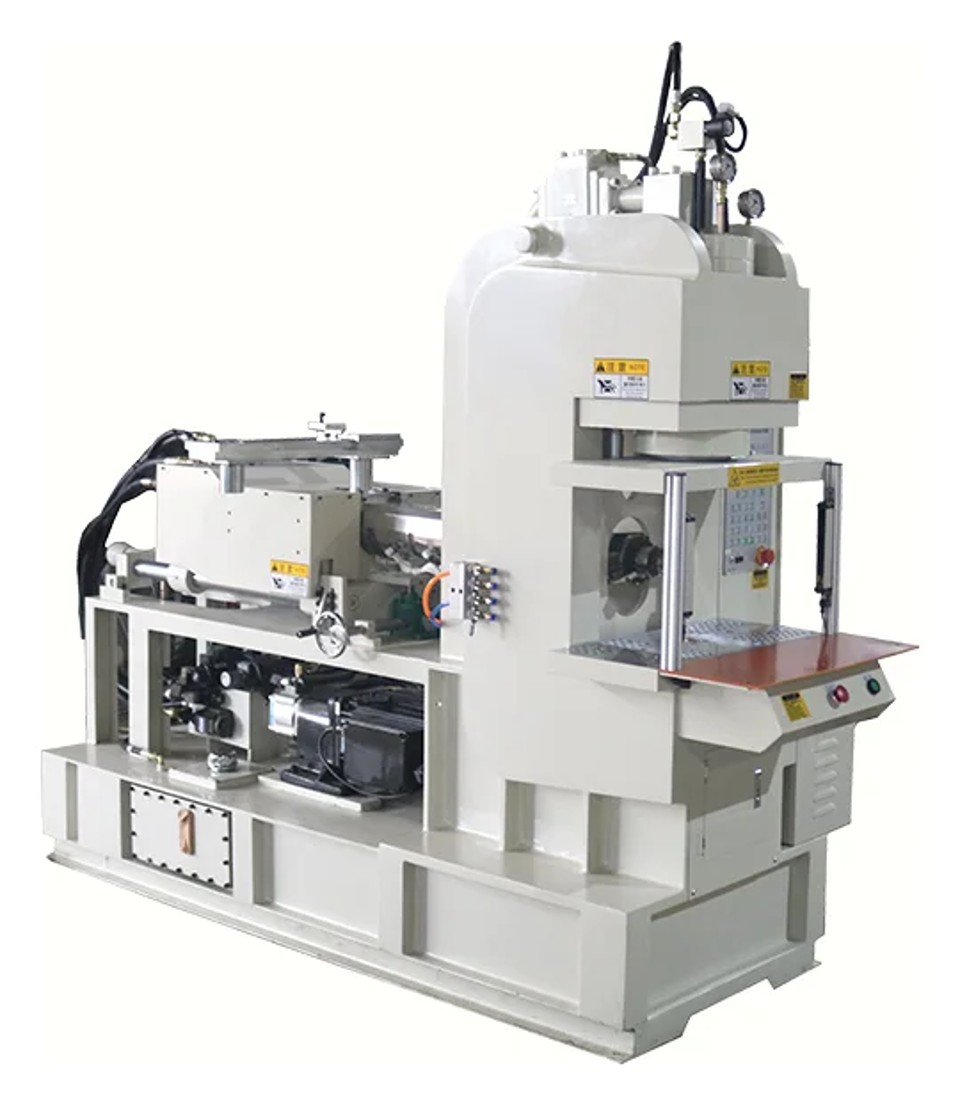

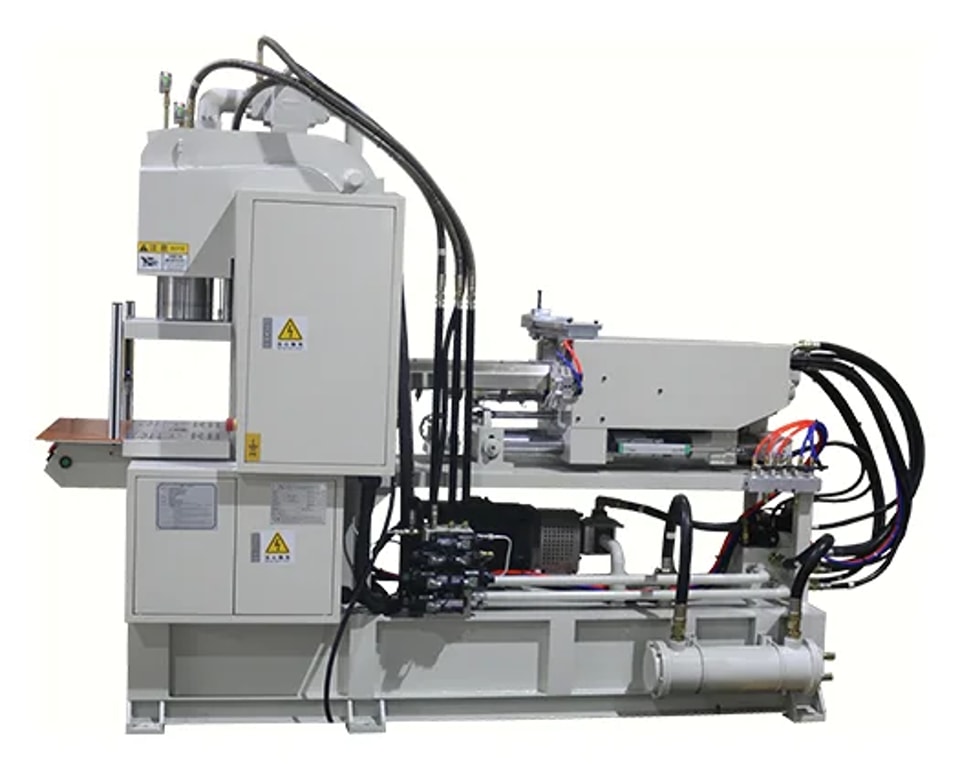

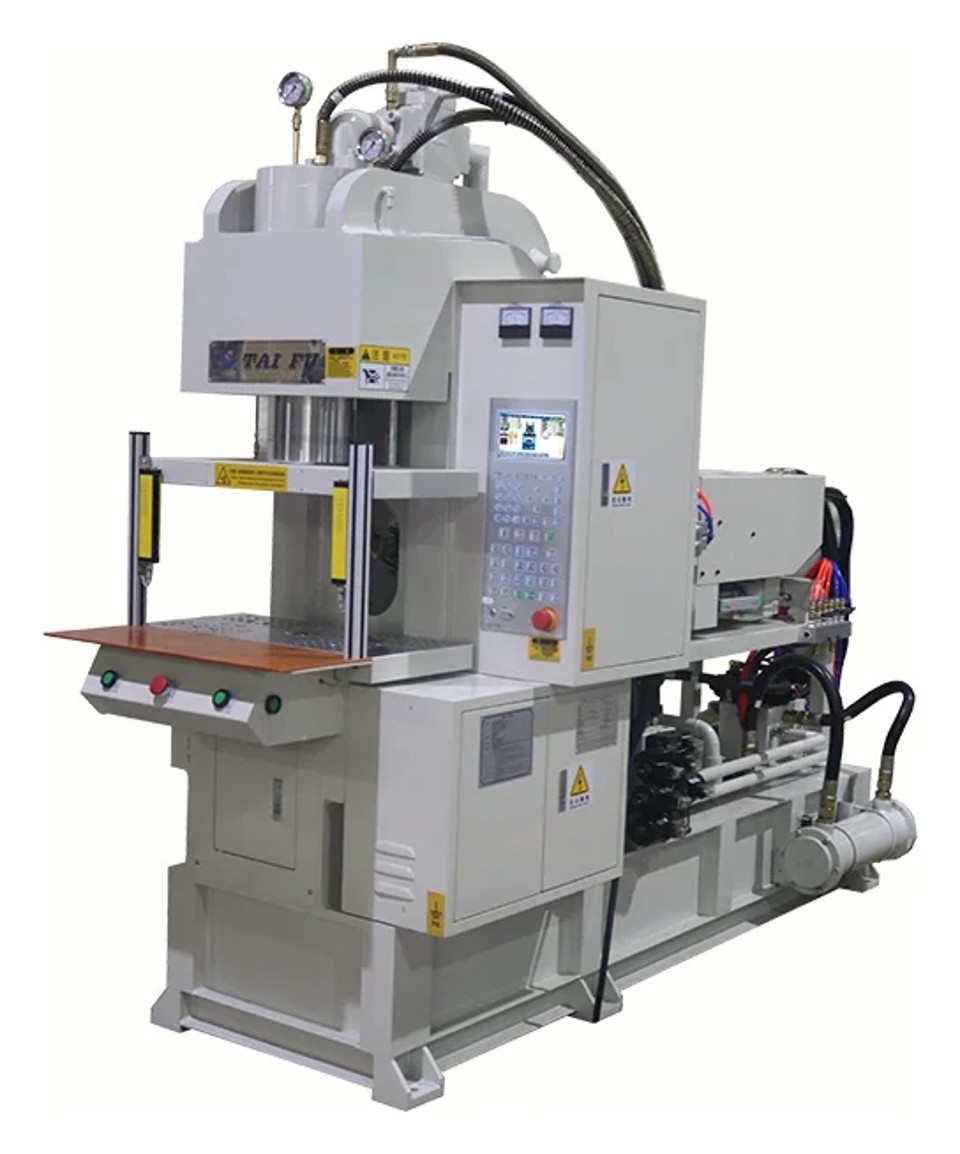

C-Frame Vertical Injection Molding Machine TF-VL45C

C-frame vertical injection molding machine with vertical clamping and horizontal injection; the tie-bar-free frame leaves three sides open for insert handling and automation. Well suited to plugs and data cables.

Key features

• Vertical direct-pressure clamping with horizontal injection.
• Tie-bar-free C-frame, open on three sides, for easy insert loading and part removal and simple integration with automated lines.
• One-piece C-frame steel structure with minimal deflection under high clamping load.
• Single or twin-cylinder injection system for high precision and long service life.
• Injection unit height adjustable manually or automatically for fast mould alignment and set-up, preventing flash.
• Chinese/English controller with screen display and dual proportional pressure and flow control; rigid structure, high pressure and high speed.
• Hydraulic options: semi-closed loop, closed loop, servo or high-speed injection.
• Available as standard, sliding table, double sliding table or rotary table (2- or 3-station) versions.
