High-Speed Vertical Machines: Fixed, Sliding and Rotary Versions

Taifu high-speed vertical machines are designed for ultra-thin-wall parts. They offer a large mold mounting area, injection speeds up to 500 mm/s and clamping forces from 35 to 500 tons, with vertical clamping and vertical injection.

Versions

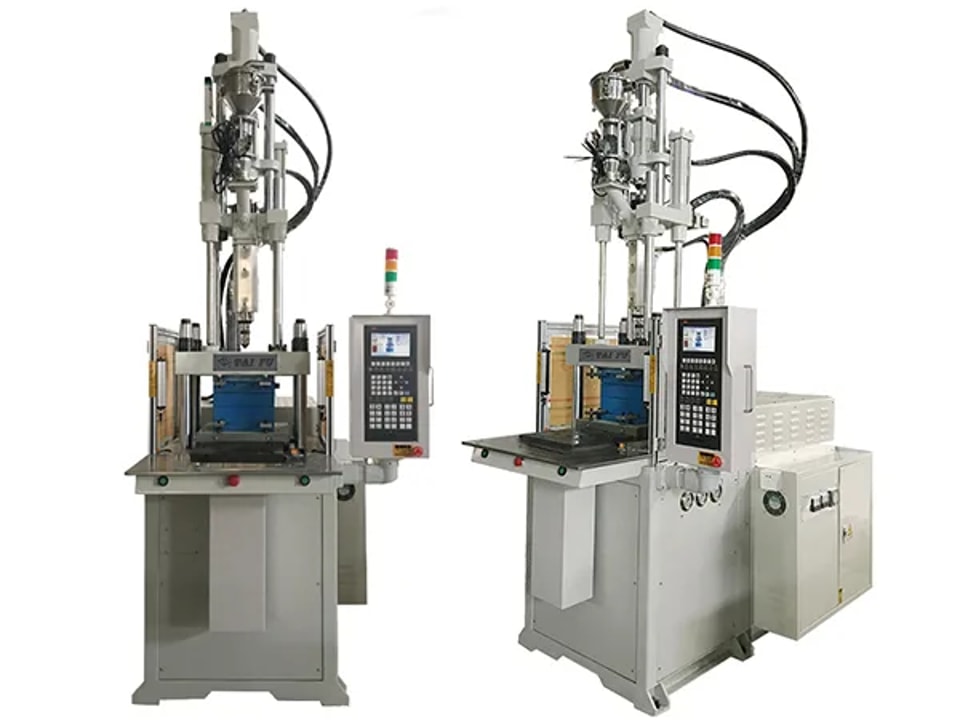

• Fixed table: fixed lower mold, moving upper mold.
• Sliding table: one upper and one lower mold; the lower mold slides in and out, so the operator's hands stay outside the clamping area.

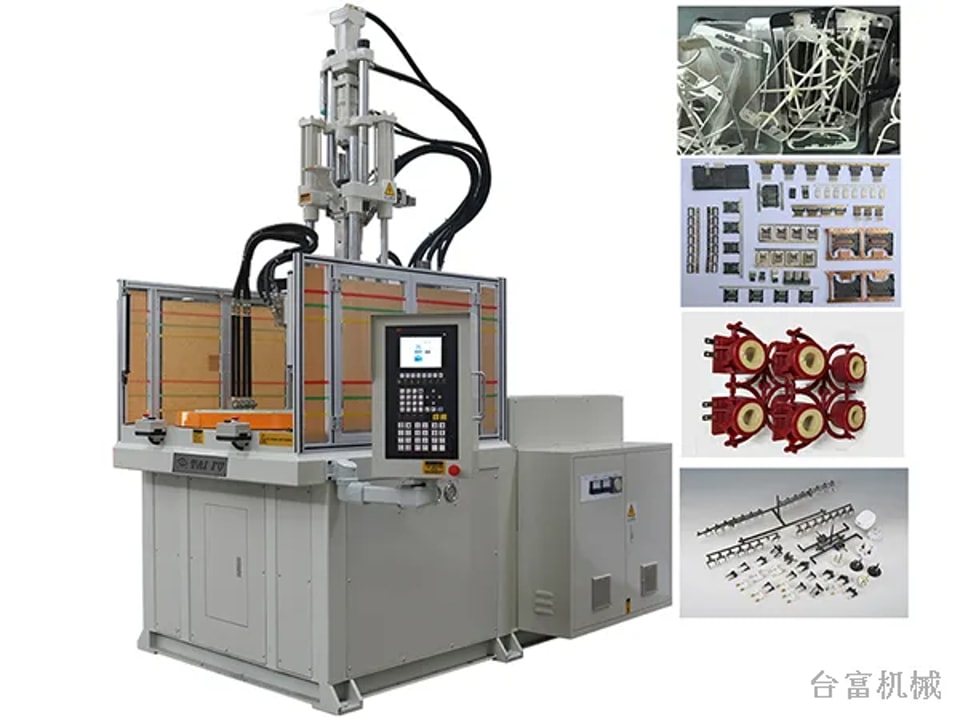

• Rotary table: one upper mold and two or more lower molds, indexing 180°; can be fully automated to save labor.

All three versions come with safety doors and light curtains, low-pressure mold protection and overload protection. Bosch Rexroth servo valves are optional, giving closed-loop injection control and high shot accuracy for thin-wall parts.

Applications

Connectors for new-energy vehicles and mobile phones, card trays, SIM and SD cards, contactless IC cards, fiber-optic connectors, reader-head holders, IC sockets and trays, small switches, waterproof plugs, eyewear nose pads, buttons, tags, overmolded shoe studs, and parts for clocks and cameras.
